ATEX Certified Rotary Valve EM-RVEX-MD Series
ATEX Certified Rotary Valve EM-RVEX-MD Series
SKU:FIR-545b88
NFPA 69 compliant ATEX Certified Rotary Valve for industrial applications. Customizable rotor tips & robust design for safe bulk handling.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
ATEX Certified Rotary Valve EM-RVEX-MD Series
$799.99
Quantity: 1
Claim Your Seller Account
ATEX Certified Rotary Valve EM-RVEX-MD Series
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

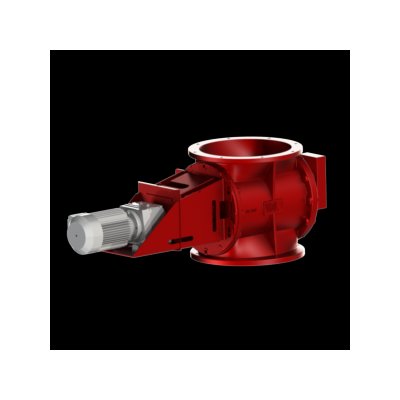

The EM-RVEX-MD Series Certified Rotary Valve, part of the EcoMAXX® line, offers reliable explosion isolation for industrial filtration, pneumatic conveying, and bulk handling processes. Certified to withstand Explosive Pressures up to 2.5 Bar, this NFPA 69 compliant rotary valve comes in standard, medium, and heavy-duty designs with customizable rotor tip options. Featuring a cast iron housing, direct drive motor, and versatile sealing options, it ensures efficient and safe operation, meeting stringent ATEX Certification EN 15089 & NFPA 69 standards.
Product Specifications
Specifications Standard Features
Sizes: 6 Inch (150mm), 8 Inch (250mm), 10 Inch (250mm) & 12 Inch (300mm) Certified to withstand Explosive Pressures up to 2.5 Bar (39.26 PSI) / 1.7 Bar (24.66 PSI) with Vulkollan Tips Easy Access to the Inside of the Valve 8 Vane Rotor with Options for Vulkollan (Polyurethane) Steel or Stainless Steel Tips Cast Iron Housing with Flanged Inlet/Outlet Direct Drive Motor with Flexible Coupling and Gearbox Shaft Sealing with Adjustable Gland Gasket Options for Variable Speed Controller, Flange Gaskets, Isolation Box, Air Purge Seals, Special Plating Such As Chromium or Nickel, Stainless Steel Construction and Quick Disassembly are Available.
