Atkomatic 1000 Series Solenoid Valve - Stainless Steel, 3/32" Orifice, Buna N Seal, 500 psig

Name: Atkomatic 1000 Series Solenoid Valve - Stainless Steel, 3/32" Orifice, Buna N Seal, 500 psig
Brand: Circle Valve Technologies Inc.
SKU: ATK-f03836
Price: 69.99 USD
Availability: OutOfStock

SKU:ATK-f03836

Durable Atkomatic 1000 Series Solenoid Valve - Direct Lift, 3/32" Orifice, Stainless Steel, Buna N Seal - 500 psig

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

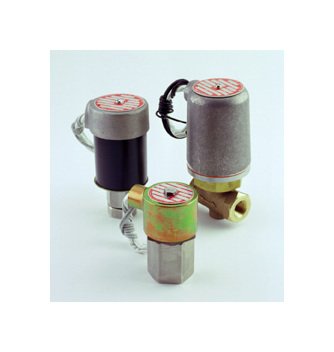

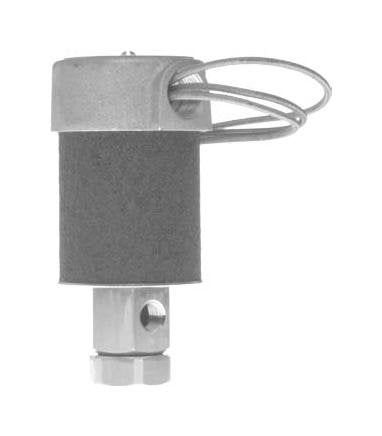

The Atkomatic 1000 Series Solenoid Valve is a durable and versatile solution designed for medium-pressure applications. Constructed with stainless steel, it can withstand pressures up to 500 psig, making it suitable for a wide range of fluids including air, hydraulic fluids, and corrosive liquids. With a compact size and optional seat materials, this valve offers flexibility and reliability. Featuring a Class H coil and NEMA 1 coil housing, it ensures efficient operation and longevity, meeting the demands of institutional buyers.

Product Specifications

Specifications Body Material

Stainless Steel

Specifications Coil Insulation Rating

Class H (180Â° C)

Specifications Coil Type

Double Wound (Relay Required)

Specifications Connection Size

1/4 in

Specifications Connection Type

Female NPT

Specifications Cv

0.22

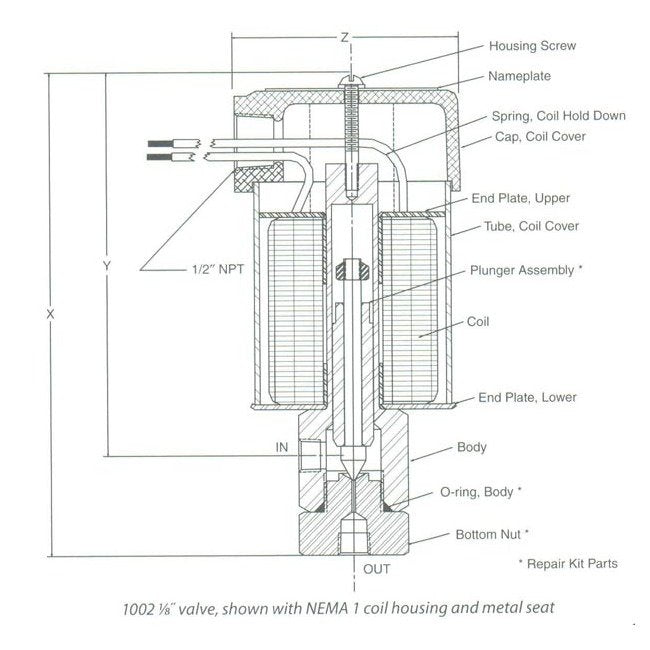

Specifications Dim X

5 3/4 in

Specifications Dim Y

4 5/8 in

Specifications Dim Z

2 3/4 in

Specifications Fluid Media Type

Liquid up to 40 SUS

Specifications Operating Pressure

500 psig

Specifications Orifice Size

3/32 in

Specifications Position Of Valve De Energized

Normally Closed

Specifications Seat Seal Material

Buna N

Specifications Series

1100

Specifications Temperature Range

-65 to 275 ÂºF | -54 to 135 ÂºC

Specifications Type

Solenoid Valve

Specifications Voltage

115 VAC
