Atkomatic 15400 Series Bronze Solenoid Valve 1 inch NPT
Atkomatic 15400 Series Bronze Solenoid Valve 1 inch NPT
SKU:ATK-837422
Reliable Atkomatic 15400 Series Solenoid Valve for low-pressure fluid applications, bronze body, Viton seals, 1-inch NPT, normally closed.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Atkomatic 15400 Series Bronze Solenoid Valve 1 inch NPT
$89.99
Quantity: 1
Claim Your Seller Account
Atkomatic 15400 Series Bronze Solenoid Valve 1 inch NPT
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 15400 Series Solenoid Valve is a robust solution designed for low-pressure fluid applications. With a bronze body material and Viton seals, this valve is suitable for a wide range of media types, from air and gases to hydraulic fluids and cryogenic liquids. Operating at pressures up to 300 psig and temperatures ranging from -15 to 400°F, it offers reliable performance across diverse environments. The valve features a normally closed configuration, single-wound molded coil, and standard coil housing, making it a versatile and durable choice for industrial applications.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class B (155° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1 in
Specifications Connection Type
Female NPT
Specifications Cv
9.1
Specifications Dim X
7.9375 in
Specifications Dim Y
6.625 in
Specifications Dim Z
3.75 in
Specifications Fluid Media Type
Liquid from 41 SUS to 150 SUS
Specifications Main Seat Orifice
1 in

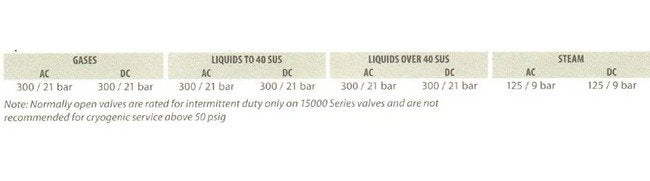

Specifications Operating Pressure
0 to 300 psig | 0 to 21 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Viton®
Specifications Series
15400
Specifications Temperature Range
-15 to 400 ºF | -29 to 204 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
