Atkomatic 15400 Series Bronze Solenoid Valve
Atkomatic 15400 Series Bronze Solenoid Valve
SKU:ATK-b0a45b
Atkomatic 15400 Series Bronze Solenoid Valve - High-performance, durable, and versatile valve for fluid applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Atkomatic 15400 Series Bronze Solenoid Valve
$189.99
Quantity: 1
Claim Your Seller Account
Atkomatic 15400 Series Bronze Solenoid Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 15400 Series Bronze Solenoid Valve is a high-performance, semi-direct lift valve designed for a wide range of fluid applications. With a pressure range of 0 to 300 psig, this valve operates efficiently even at zero pressure differential. Constructed from naval M bronze, it ensures durability and reliability. This valve is suitable for various fluids including air, gas, liquids, hydraulic fluids, and more, offering versatility for different industrial settings. Additionally, with optional seat materials and coil housing choices, it can be customized to specific requirements, making it a dependable choice for institutional and government procurement needs.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class B (155° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
3/4 in
Specifications Connection Type
Female NPT
Specifications Cv
7.5
Specifications Dim X
7.9375 in
Specifications Dim Y
6.625 in
Specifications Dim Z
3.75 in
Specifications Fluid Media Type
Liquid up to 40 SUS
Specifications Main Seat Orifice
1 in

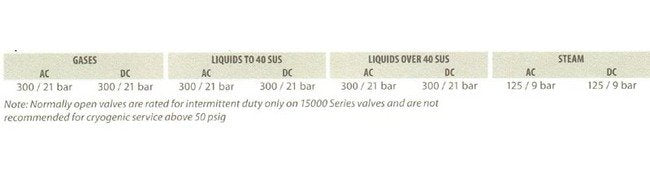

Specifications Operating Pressure
0 to 300 psig | 0 to 21 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Buna N
Specifications Series
15400
Specifications Temperature Range
-65 to 275 ºF | -54 to 135 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
