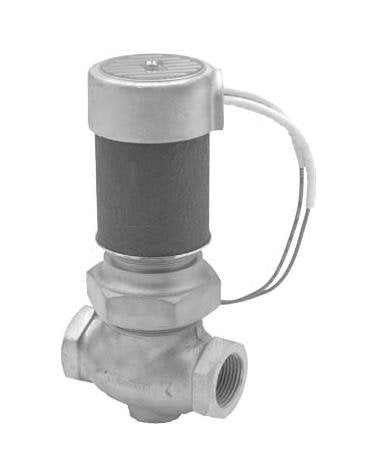

Atkomatic 15800 Series Solenoid Valve
Atkomatic 15800 Series Solenoid Valve
SKU:ATK-6dc12d
High-performance stainless steel solenoid valve for diverse fluid applications. Semi-direct lift operation, suitable for extreme temperatures and pressures.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Atkomatic 15800 Series Solenoid Valve
$249.99
Quantity: 1
Claim Your Seller Account
Atkomatic 15800 Series Solenoid Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 15800 Series Solenoid Valve is a high-performance solution ideal for a wide range of fluid applications. Constructed with stainless steel for superior durability, it features a semi-direct lift action for efficient operation even at zero pressure differential. This valve is designed for media temperatures ranging from -423°F to +500°F, with a maximum operating pressure of 1500 psi. With customizable pilot and piston seat materials, it can handle various fluids including air, gases, liquids, hydraulic fluids, steam, cryogenic fluids, and corrosive substances. The valve also offers options for different coil housings based on environmental needs and additional features like a manual opening device and valve position indicator.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1/4 in
Specifications Connection Type
Female NPT
Specifications Cv
1.10
Specifications Dim X
7.375 in
Specifications Dim Y
6.5 in
Specifications Dim Z
3 in
Specifications Fluid Media Type
Gas
Specifications Main Seat Orifice
.375 in

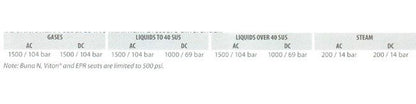

Specifications Operating Pressure
0 to 1500 psig | 0 to 104 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Viton®
Specifications Series
15800
Specifications Temperature Range
-15 to 400 ºF | -29 to 204 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
