Atkomatic 15800 Series Stainless Steel Solenoid Valve
Atkomatic 15800 Series Stainless Steel Solenoid Valve
SKU:ATK-24643b
Premium stainless steel solenoid valve for diverse fluid applications, ensuring reliability and durability.
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
Atkomatic 15800 Series Stainless Steel Solenoid Valve
$239.99
Quantity: 1
Claim Your Seller Account
Atkomatic 15800 Series Stainless Steel Solenoid Valve
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 15800 Series Solenoid Valve is a high-performance solution designed for a wide range of fluid applications. Crafted with stainless steel construction, this valve offers exceptional corrosion resistance and durability. With a semi-direct lift action allowing for operation down to zero pressure differential, this valve ensures reliable performance. Suitable for diverse fluids ranging from air to corrosive fluids, it features interchangeable pilot and piston seat materials to suit specific fluid types and pressures. Compliant with industry standards, this valve is an ideal choice for institutional and government procurement.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1/4 in
Specifications Connection Type
Female NPT
Specifications Cv
1.10

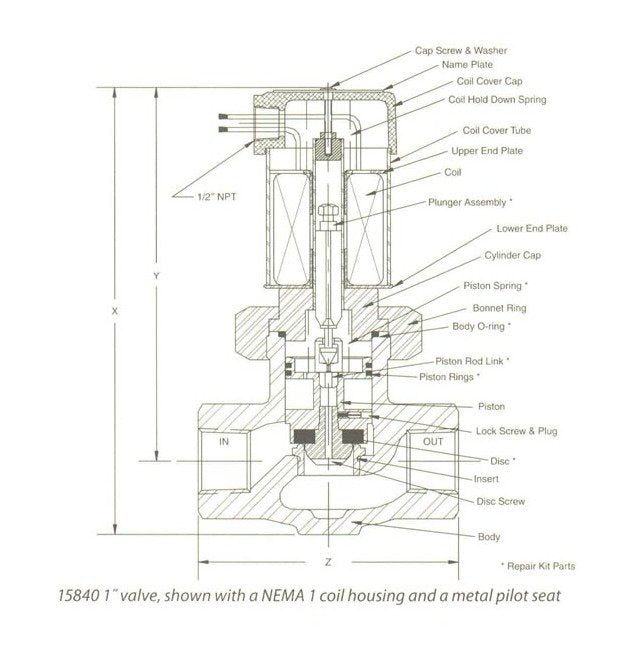

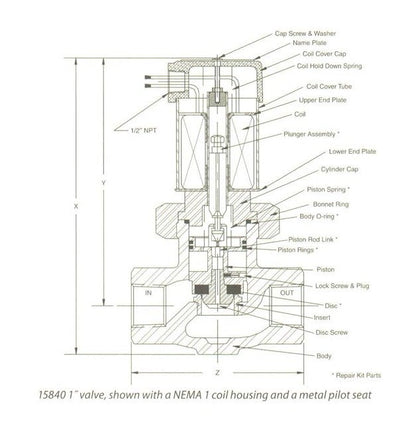

Specifications Dim X
7.375 in
Specifications Dim Y
6.5 in
Specifications Dim Z
3 in
Specifications Fluid Media Type
Liquid from 41 SUS to 150 SUS
Specifications Main Seat Orifice
.375 in

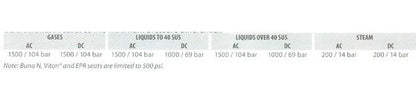

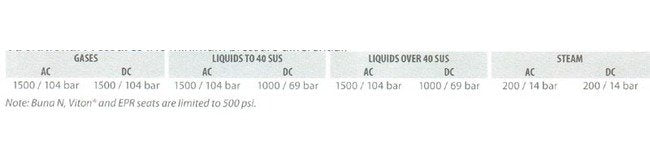

Specifications Operating Pressure
0 to 1500 psig | 0 to 104 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Buna N
Specifications Series
15800
Specifications Temperature Range
-65 to 275 ºF | -54 to 135 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
