Atkomatic 15800 Series Stainless Steel Solenoid Valve
Atkomatic 15800 Series Stainless Steel Solenoid Valve
SKU:ATK-a9e498
Enhance fluid control with stainless steel Atkomatic valve. Semi-direct lift, up to 1500 psi, diverse fluid compatibility.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Atkomatic 15800 Series Stainless Steel Solenoid Valve
$349.99
Quantity: 1
Claim Your Seller Account
Atkomatic 15800 Series Stainless Steel Solenoid Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your fluid applications with the Atkomatic 15800 Series Solenoid Valve. Constructed with 316 stainless steel and CF8M parts, this valve offers reliable operation from 0 to 1500 psig. Features include semi-direct lift action, operation up to 1500 psi, and versatility in handling various fluids and temperatures. With options for different seat materials and coil housings, this valve is suitable for a wide range of industrial applications.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
3/4 in
Specifications Connection Type
Female NPT
Specifications Cv
7.5
Specifications Dim X
8.25 in
Specifications Dim Y
7.125 in
Specifications Dim Z
4.625 in
Specifications Fluid Media Type
Liquid from 41 SUS to 150 SUS
Specifications Main Seat Orifice
.75 in

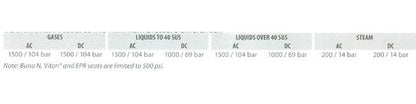

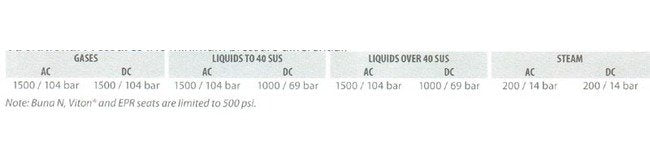

Specifications Operating Pressure
0 to 1500 psig | 0 to 104 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Buna N
Specifications Series
15800
Specifications Temperature Range
-65 to 275 ºF | -54 to 135 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
