The Atkomatic 15800 Series Solenoid Valve is a premium medium pressure valve designed for a variety of fluid applications, from air and gases to hydraulic fluids and corrosive fluids. With stainless steel construction on all wetted parts and a semi-direct lift action allowing operation down to zero pressure, this valve ensures durability and reliability. It features a Buna N seat and seal material, making it suitable for gas media. Equipped with a range of optional materials and coil housing choices, this valve offers flexibility tailored to your specific needs.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
3/8 in
Specifications Connection Type
Female NPT
Specifications Cv
2.50
Specifications Dim X
7.375 in
Specifications Dim Y
6.5 in
Specifications Dim Z
3 in
Specifications Fluid Media Type
Gas
Specifications Main Seat Orifice
.375 in

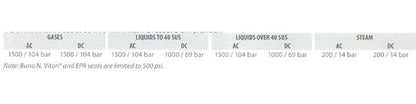

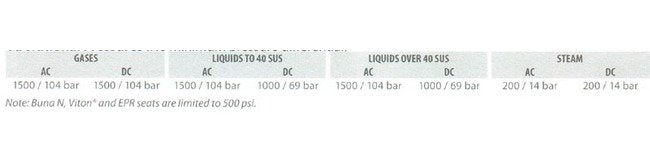

Specifications Operating Pressure
0 to 1500 psig | 0 to 104 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Buna N
Specifications Series
15800
Specifications Temperature Range
-65 to 275 ºF | -54 to 135 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
