Atkomatic 15800 Series Stainless Steel Solenoid Valve
Atkomatic 15800 Series Stainless Steel Solenoid Valve
SKU:ATK-cc126b
Durable stainless steel solenoid valve for medium-pressure fluid applications, offering reliability and versatility.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Atkomatic 15800 Series Stainless Steel Solenoid Valve
$189.99
Quantity: 1
Claim Your Seller Account
Atkomatic 15800 Series Stainless Steel Solenoid Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 15800 Series Solenoid Valve is a high-quality, medium-pressure valve designed for a wide range of fluid applications. Constructed with stainless steel including 316 barstock parts and CF8M cast parts, it offers exceptional durability and corrosion resistance. Featuring a semi-direct lift action that operates down to zero pressure, this valve is suitable for pressures up to 1500 psi. With a temperature range from -65 to 275°F and compatibility with various fluids including corrosive ones, it's a versatile and reliable choice for institutional and government buyers seeking precision and durability.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1/2 in
Specifications Connection Type
Female NPT
Specifications Cv
5.10

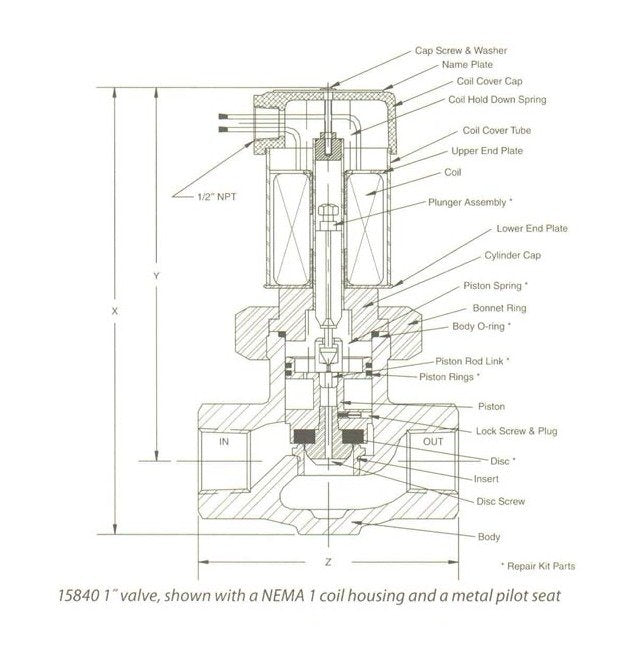

Specifications Dim X
8.25 in
Specifications Dim Y
7.125 in
Specifications Dim Z
4.625 in
Specifications Fluid Media Type
Liquid up to 40 SUS
Specifications Main Seat Orifice
.75 in

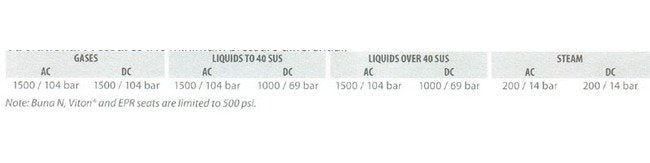

Specifications Operating Pressure
0 to 1500 psig | 0 to 104 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Buna N
Specifications Series
15800
Specifications Temperature Range
-65 to 275 ºF | -54 to 135 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
