Atkomatic 15800 Series Stainless Steel Solenoid Valve
Atkomatic 15800 Series Stainless Steel Solenoid Valve
SKU:ATK-a6c120
Premium stainless steel solenoid valve for medium pressure applications, versatile and durable.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Atkomatic 15800 Series Stainless Steel Solenoid Valve
$289.99
Quantity: 1
Claim Your Seller Account
Atkomatic 15800 Series Stainless Steel Solenoid Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

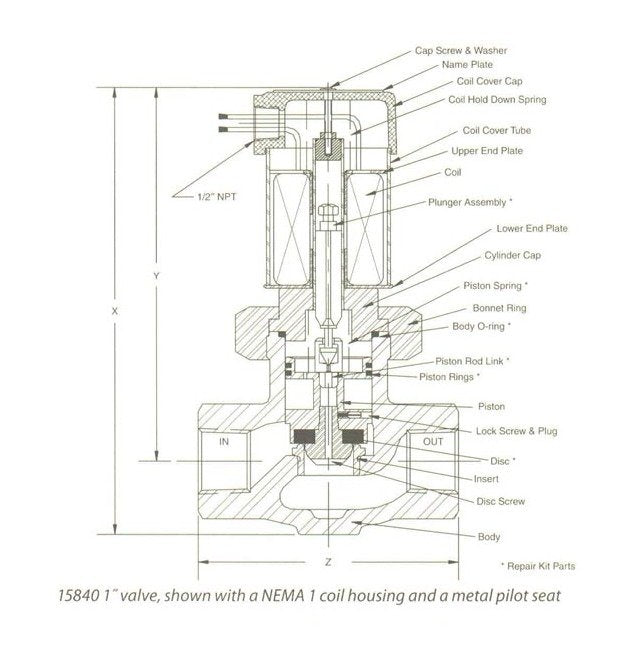

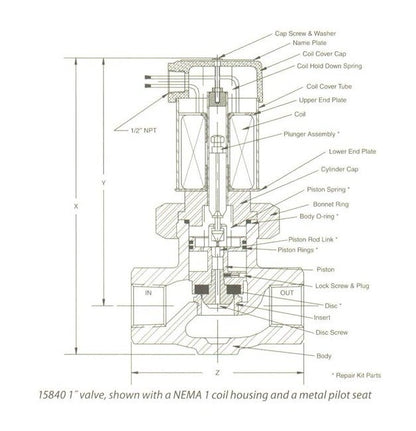

The Atkomatic 15800 Series Solenoid Valve is a high-quality semi-direct lift valve suitable for medium pressure applications. Constructed with stainless steel components, it offers exceptional durability and corrosion resistance. With a normally closed operation and the ability to handle media temperatures ranging from -423°F to +500°F, this valve is versatile and reliable. It is configurable for various fluid types including air, gases, liquids, hydraulic fluids, and more. Equipped with features like optional pilot and piston seat materials, removable body inserts, and a variety of coil housing options, this solenoid valve is designed to meet the rigorous demands of institutional and government procurement standards.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1/2 in
Specifications Connection Type
Female NPT
Specifications Cv
5.10
Specifications Dim X
8.25 in
Specifications Dim Y
7.125 in
Specifications Dim Z
4.625 in
Specifications Fluid Media Type
Liquid from 41 SUS to 150 SUS
Specifications Main Seat Orifice
.75 in

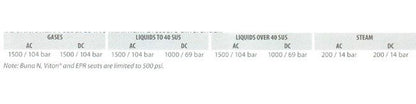

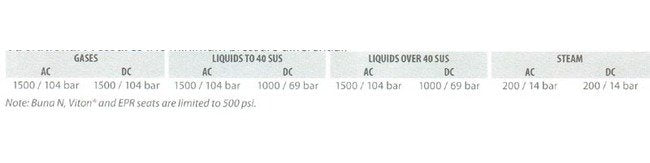

Specifications Operating Pressure
0 to 1500 psig | 0 to 104 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Viton®
Specifications Series
15800
Specifications Temperature Range
-15 to 400 ºF | -29 to 204 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
