Atkomatic 15800 Series Stainless Steel Solenoid Valve
Atkomatic 15800 Series Stainless Steel Solenoid Valve
SKU:ATK-9fff1c
Durable Atkomatic 15800 Series Solenoid Valve for medium-pressure applications. Stainless steel construction, wide fluid compatibility, and efficient operation.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Atkomatic 15800 Series Stainless Steel Solenoid Valve
$189.99
Quantity: 1
Claim Your Seller Account
Atkomatic 15800 Series Stainless Steel Solenoid Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 15800 Series Solenoid Valve is a durable and versatile option designed for medium-pressure applications. Constructed with stainless steel materials, this valve offers exceptional corrosion resistance and can handle a wide range of fluids including air, liquids, hydraulic fluids, and more. With a semi-direct lift action and normally closed operation, it functions efficiently even at zero pressure differential. Suitable for temperatures ranging from -65 to 300 °F and operating pressures up to 1500 psig, this valve is a reliable choice for various industrial settings.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1/2 in
Specifications Connection Type
Female NPT
Specifications Cv
5.10

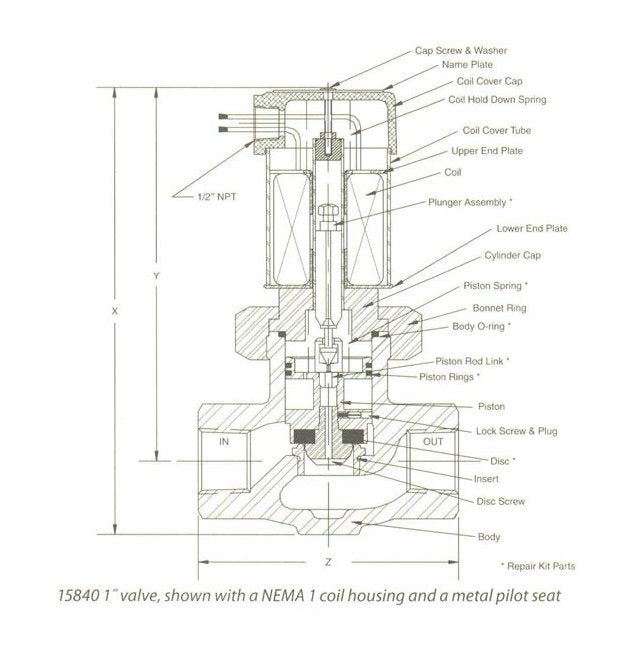

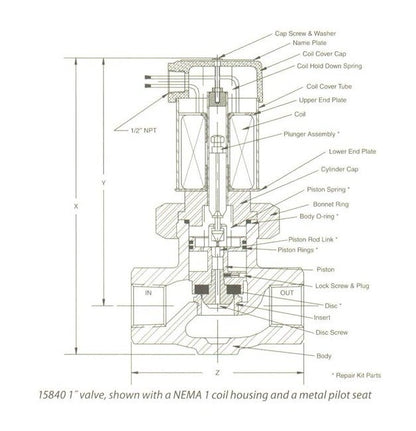

Specifications Dim X
8.25 in
Specifications Dim Y
7.125 in
Specifications Dim Z
4.625 in
Specifications Fluid Media Type
Liquid up to 40 SUS
Specifications Main Seat Orifice
.75 in

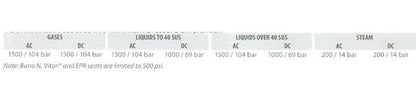

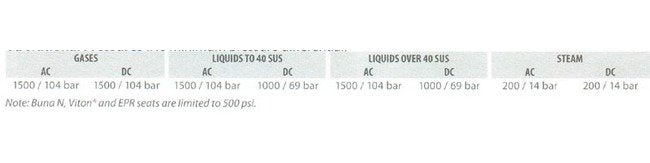

Specifications Operating Pressure
0 to 1500 psig | 0 to 104 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
EPR
Specifications Series
15800
Specifications Temperature Range
-65 to 300 ºF | -54 to 149 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
