Atkomatic 15800 Series Stainless Steel Solenoid Valves
Atkomatic 15800 Series Stainless Steel Solenoid Valves
SKU:ATK-627fb0
The Atkomatic 15800 Series Stainless Steel Solenoid Valves - Efficient, reliable, and versatile for fluid applications. Teflon® seals ensure durability.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Atkomatic 15800 Series Stainless Steel Solenoid Valves
$299.99
Quantity: 1
Claim Your Seller Account
Atkomatic 15800 Series Stainless Steel Solenoid Valves
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 15800 Series Solenoid Valves are engineered for exceptional performance in various fluid applications. Constructed with high-quality stainless steel, these semi-direct lift valves operate efficiently from zero pressure differential up to 1500 psi. With a wide temperature range and compatibility with air, gases, liquids, and corrosive fluids, these valves are versatile for industrial settings. Featuring Teflon® seat and seal material, these valves ensure reliable and durable operation. Equipped with Class H coils and various coil housing options, these solenoid valves offer exceptional functionality and can be configured to meet specific fluid requirements.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
3/4 in
Specifications Connection Type
Female NPT
Specifications Cv
7.5
Specifications Dim X
8.25 in
Specifications Dim Y
7.125 in
Specifications Dim Z
4.625 in
Specifications Fluid Media Type
Gas
Specifications Main Seat Orifice
.75 in

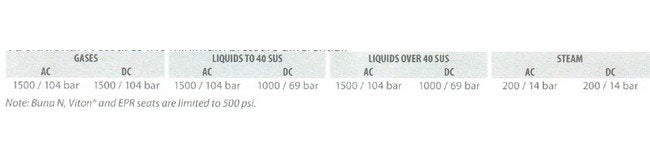

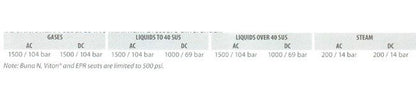

Specifications Operating Pressure
0 to 1500 psig | 0 to 104 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Teflon®
Specifications Series
15800
Specifications Temperature Range
-423 to 500 ºF | -253 to 260 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
