Atkomatic 15800 Series Stainless Steel Solenoid Valves
Atkomatic 15800 Series Stainless Steel Solenoid Valves
SKU:ATK-0b7be1
Durable stainless steel solenoid valves for medium pressure applications. Ideal for various fluid types. Customize for specific needs.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Atkomatic 15800 Series Stainless Steel Solenoid Valves
$299.99
Quantity: 1
Claim Your Seller Account
Atkomatic 15800 Series Stainless Steel Solenoid Valves
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 15800 Series Solenoid Valves are built with stainless steel construction for durability and corrosion resistance. With a semi-direct lift action capable of operating down to zero pressure differential, these valves are designed for medium pressure applications up to 1500 psi. Suitable for a wide range of fluids including air, liquids, hydraulic fluids, and corrosive substances, these valves offer flexibility and reliability. Featuring optional pilot and piston seat materials and various coil housing options, these valves are customizable to meet specific fluid type and environmental requirements.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1/4 in
Specifications Connection Type
Female NPT
Specifications Cv
1.10

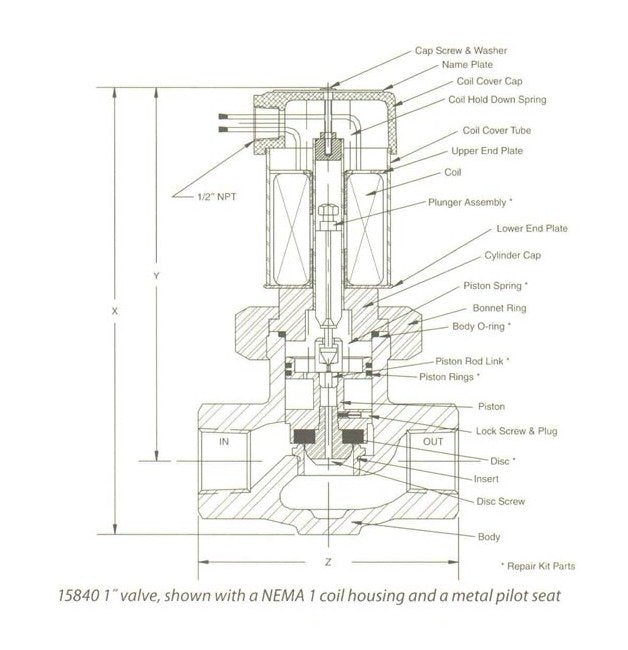

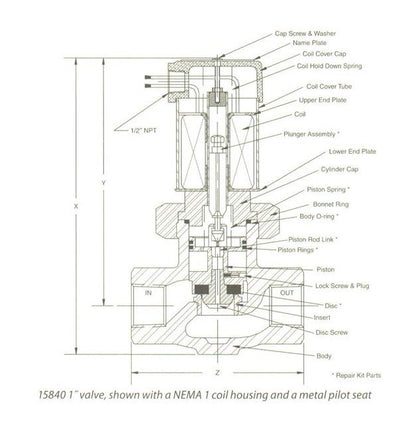

Specifications Dim X
7.375 in
Specifications Dim Y
6.5 in
Specifications Dim Z
3 in
Specifications Fluid Media Type
Liquid from 41 SUS to 150 SUS
Specifications Main Seat Orifice
.375 in

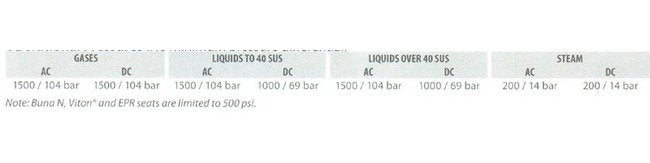

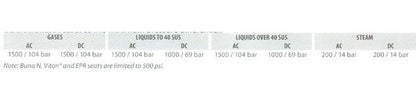

Specifications Operating Pressure
0 to 1500 psig | 0 to 104 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Viton®
Specifications Series
15800
Specifications Temperature Range
-15 to 400 ºF | -29 to 204 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
