Atkomatic 15800 Series Stainless Steel Solenoid Valves
Atkomatic 15800 Series Stainless Steel Solenoid Valves
SKU:ATK-f5a575
Durable stainless steel solenoid valves for medium-pressure fluid control. Semi-direct lift action, wide fluid compatibility, and Class H coils.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Atkomatic 15800 Series Stainless Steel Solenoid Valves
$299.99
Quantity: 1
Claim Your Seller Account
Atkomatic 15800 Series Stainless Steel Solenoid Valves
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 15800 Series Solenoid Valves are a reliable solution for medium-pressure fluid control applications. Constructed with high-quality stainless steel materials, these valves offer exceptional durability and corrosion resistance. With a semi-direct lift for operation down to zero pressure, they ensure precise and efficient performance. Suitable for a wide range of fluids including gases, liquids, and corrosive substances, these valves feature various seat and seal material options to accommodate different fluid types. The valves come with Class H coils and are available in different coil housing options, making them versatile and suitable for diverse industrial environments.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1/2 in
Specifications Connection Type
Female NPT
Specifications Cv
5.10
Specifications Dim X
8.25 in
Specifications Dim Y
7.125 in
Specifications Dim Z
4.625 in
Specifications Fluid Media Type
Gas
Specifications Main Seat Orifice
.75 in

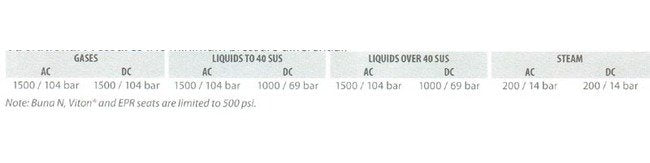

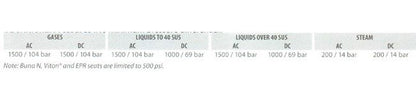

Specifications Operating Pressure
0 to 1500 psig | 0 to 104 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Teflon®
Specifications Series
15800
Specifications Temperature Range
-423 to 500 ºF | -253 to 260 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
