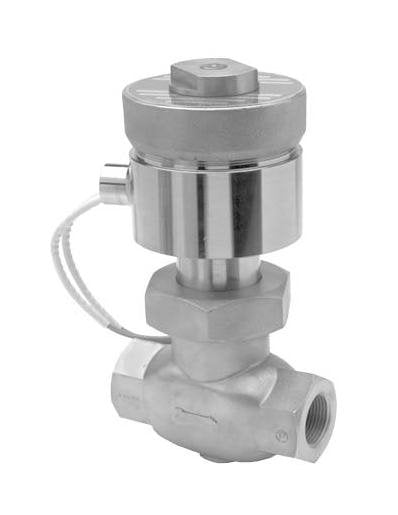

Atkomatic 30400 Series Bronze Solenoid Valve
Atkomatic 30400 Series Bronze Solenoid Valve
SKU:ATK-28e746
Versatile Atkomatic 30400 Series Bronze Solenoid Valve for medium pressure applications, configurable for various fluids.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Atkomatic 30400 Series Bronze Solenoid Valve
$129.99
Quantity: 1
Claim Your Seller Account
Atkomatic 30400 Series Bronze Solenoid Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 30400 Series Bronze Solenoid Valve is a versatile semi-direct lift valve designed to handle medium pressure applications with precision and durability. This valve features a bronze body suitable for various fluids, including gases, liquids, hydraulic fluids, and more, with a temperature range from -65 to 275°F. With configurable seat materials and removable stainless steel inserts, it offers flexibility for different fluid types and pressures. The valve is available in both normally open and normally closed configurations, making it suitable for a wide range of industrial applications.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
2 in
Specifications Connection Type
Female NPT
Specifications Cylinder Cap Style
Threaded Cylinder Cap
Specifications Fluid Media Type
Gas
Specifications Operating Pressure
0 to 1500 psig | 0 to 104 bar
Specifications Position Of Valve De Energized
Normally Open
Specifications Seat Seal Material
Buna N
Specifications Series
30400
Specifications Temperature Range
-65 to 275 ºF | -54 to 135 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
