Atkomatic 4000/5000 Series Cryogenic Solenoid Valves
Atkomatic 4000/5000 Series Cryogenic Solenoid Valves
SKU:ATK-68e9fa
Highly configurable Atkomatic 4000/5000 Series Solenoid Valves for a variety of fluid applications in medium-pressure environments.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Atkomatic 4000/5000 Series Cryogenic Solenoid Valves
$289.99
Quantity: 1
Claim Your Seller Account
Atkomatic 4000/5000 Series Cryogenic Solenoid Valves
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 4000/5000 Series Solenoid Valves are expertly crafted from bronze, designed as pilot-piston valves to operate under pressures ranging from 5 to 500 psig (0.4 to 34.5 bar). These medium-pressure valves are highly configurable for a variety of fluid applications, including gases, liquids (max. viscosity of 200 SSU), steam, and cryogenics. With pipe sizes ranging from 1/4" to 3" NPT, these valves offer full porting, pilot operation requiring a minimum pressure differential of 5 psig (0.4 bar), and are available in normally open and normally closed versions. Featuring a wide temperature range from -423°F to +500°F (-253°C to +260°C) and multiple seat and seal material options, these valves provide versatility and reliability for critical industrial applications.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
3/8 in
Specifications Connection Type
Female NPT
Specifications Cv
2.70

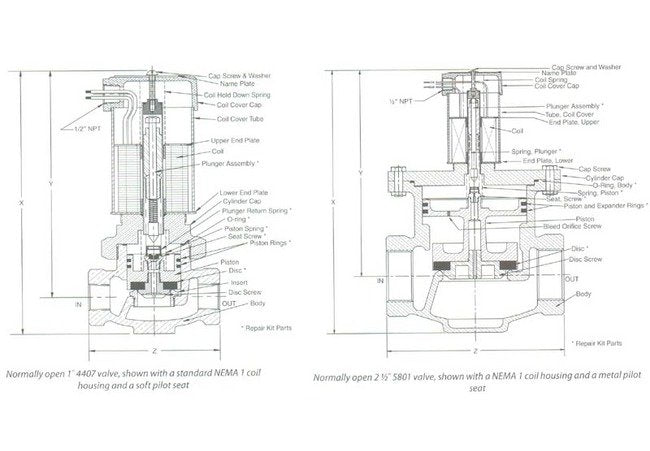

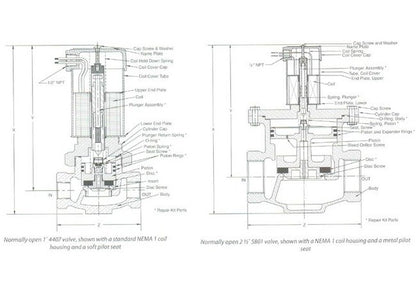

Specifications Dim X
8 1/8 in
Specifications Dim Y
7 1/4 in
Specifications Dim Z
2.6875 in
Specifications Fluid Media Type
Cryogenic
Specifications Main Seat Orifice
.375 in
Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Open
Specifications Seat Seal Material
Teflon®
Specifications Series
4000
Specifications Temperature Range
-423 to 500 ºF | -253 to 260 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
