Atkomatic 4000/5000 Series Solenoid Valve
Atkomatic 4000/5000 Series Solenoid Valve
SKU:ATK-69db7b
Enhance fluid control with Atkomatic 4000/5000 Series Solenoid Valve. Ideal for medium pressure applications with versatile fluid compatibility.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Atkomatic 4000/5000 Series Solenoid Valve
$349.99
Quantity: 1
Claim Your Seller Account
Atkomatic 4000/5000 Series Solenoid Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your fluid control system with the Atkomatic 4000/5000 Series Solenoid Valve. This bronze valve is pilot-operated, designed for medium pressure applications ranging from 5 to 500 psig. With a Cv range from 1.4 to 71, this valve offers precise control for a variety of fluid types, including gases, liquids, steam, and cryogenics. It features interchangeable seat materials to suit different fluid types and pressures, ensuring versatile compatibility. The valve is available in normally open and normally closed versions, with optional coil housings for different environmental conditions. From -423°F to +500°F fluid temperatures, this valve maintains efficient operation in extreme thermal environments.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1 1/4 in
Specifications Connection Type
Female NPT
Specifications Cv
19.5

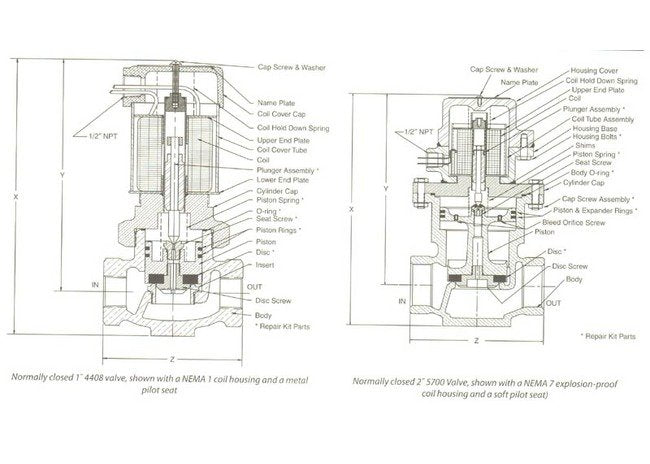

Specifications Dim X
9 13/16 in
Specifications Dim Y
8 in
Specifications Dim Z
5 1/16 in
Specifications Fluid Media Type
Liquid up to 40 SUS
Specifications Main Seat Orifice
1 1/2 in
Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Teflon®
Specifications Series
4000
Specifications Temperature Range
-423 to 500 ºF | -253 to 260 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
