Atkomatic 4000/5000 Series Solenoid Valves - Bronze, Pilot-piston

Atkomatic 4000/5000 Series Solenoid Valves - Bronze, Pilot-piston

ATK-adf867

Premium Atkomatic bronze solenoid valves for medium-pressure fluid control applications.

$259.99
$259.99
Sale

Initiate Order

Atkomatic 4000/5000 Series Solenoid Valves - Bronze, Pilot-piston

Atkomatic 4000/5000 Series Solenoid Valves - Bronze, Pilot-piston

$259.99

Quantity: 1

Claim Your Seller Account

Atkomatic 4000/5000 Series Solenoid Valves - Bronze, Pilot-piston

Atkomatic 4000/5000 Series Solenoid Valves - Bronze, Pilot-piston

$259.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Atkomatic 4000/5000 Series Solenoid Valves are expertly crafted with bronze construction, pilot-piston design, and a pressure range of 5 to 500 psig, making them ideal for medium-pressure fluid applications. These valves boast full port designs, pilot-operated functionality, and wide compatibility with gases, liquids, steam, and cryogenics. With a variety of seat materials like Viton®, Teflon®, and metal options, they ensure reliable performance across diverse fluid types. The valves are available in both normally open and normally closed versions, offering flexibility to suit different system requirements.

Product Specifications

Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1 in
Specifications Connection Type
Female NPT
Specifications Cv
9.5

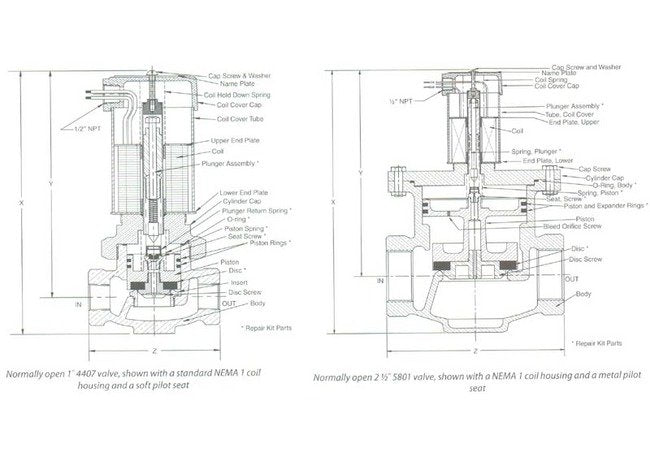

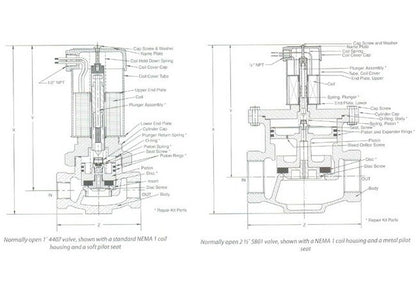

Specifications Dim X
9 7/16 in
Specifications Dim Y
8.1875 in
Specifications Dim Z
4 in
Specifications Fluid Media Type
Liquid up to 40 SUS
Specifications Main Seat Orifice
1 in
Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Open
Specifications Seat Seal Material
Viton®
Specifications Series
4000
Specifications Temperature Range
-15 to 400 ºF | -29 to 204 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
