The Atkomatic 4000/5000 Series Solenoid Valves are engineered for medium pressure applications, with pressures ranging from 5 to 500 psig (0.4 to 34.5 bar). These pilot-piston valves are versatile, suitable for various fluid types including steam and cryogenics, compatible with gas or liquid with a maximum viscosity of 200 SSU. Featuring bronze valve material and seat options including Teflon®, PCTFE, and more, these valves offer reliable performance in demanding environments. With configurations for normally open and normally closed positions, and optional coil housings for different environments, these valves provide flexibility and precision for industrial applications.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1 1/2 in
Specifications Connection Type
Female NPT
Specifications Cv
21.0

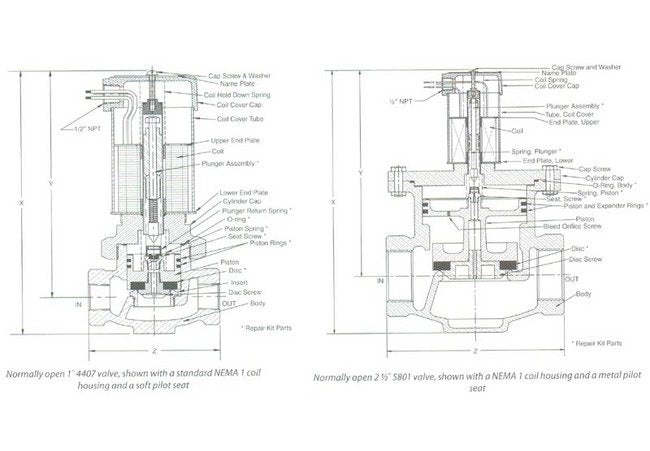

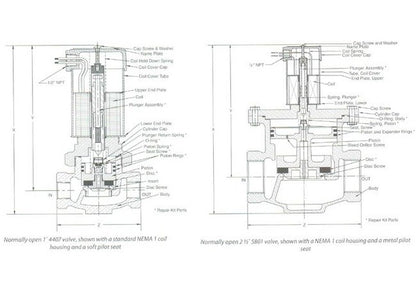

Specifications Dim X
11 in
Specifications Dim Y
9 3/16 in
Specifications Dim Z
5 1/16 in
Specifications Fluid Media Type
Steam
Specifications Main Seat Orifice
1 1/2 in
Specifications Operating Pressure
5 to 200 psig | 0.4 to 13.8 bar
Specifications Position Of Valve De Energized
Normally Open
Specifications Seat Seal Material
Teflon®
Specifications Series
4000
Specifications Temperature Range
-423 to 500 ºF | -253 to 260 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
