Atkomatic 4000/5000 Series Solenoid Valves - Bronze, Pilot-piston
Atkomatic 4000/5000 Series Solenoid Valves - Bronze, Pilot-piston
SKU:ATK-7fc005
Premium Atkomatic 4000/5000 Series Solenoid Valves with bronze construction for medium pressure applications. Versatile, reliable, and configurable for various fluid applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Atkomatic 4000/5000 Series Solenoid Valves - Bronze, Pilot-piston
$189.99
Quantity: 1
Claim Your Seller Account
Atkomatic 4000/5000 Series Solenoid Valves - Bronze, Pilot-piston
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 4000/5000 Series Solenoid Valves are meticulously engineered for medium pressure applications, with a pressure range of 5 to 500 psig (0.4 to 34.5 bar). Crafted from durable bronze, these valves offer exceptional performance across a variety of fluid applications. With a full-ported design and pilot operation requiring a minimum pressure differential of 5 psig (0.4 bar), these valves are versatile and reliable. Suitable for gases, liquids (max viscosity of 200 SSU), steam, and cryogenics, these valves come in pipe sizes ranging from 1/4" to 3" NPT. They boast Cv values from 1.4 to 71, are available in normally open and normally closed versions, and can withstand fluid temperatures from -423°F to +500°F (-253°C to +260°C). The optional seat materials cater to different fluid types and pressures, ensuring optimal performance and longevity.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
3/8 in
Specifications Connection Type
Female NPT
Specifications Cv
2.70

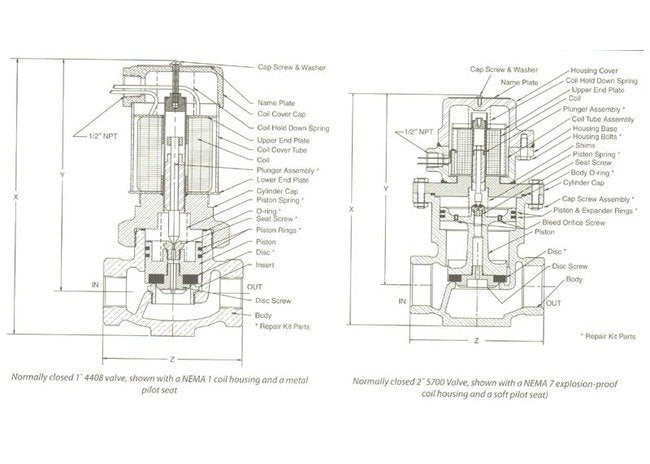

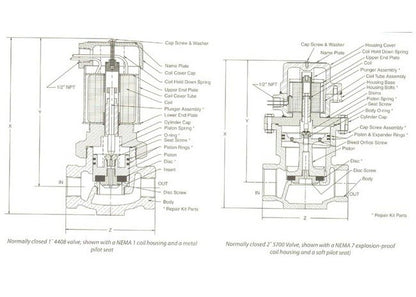

Specifications Dim X
7 1/8 in
Specifications Dim Y
6 1/4 in
Specifications Dim Z
2.6875 in
Specifications Fluid Media Type
Liquid from 41 SUS to 150 SUS
Specifications Main Seat Orifice
.375 in
Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Viton®
Specifications Series
4000
Specifications Temperature Range
-15 to 400 ºF | -29 to 204 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
