Atkomatic 4000/5000 Series Solenoid Valves - Bronze Pilot-Piston Valve
Atkomatic 4000/5000 Series Solenoid Valves - Bronze Pilot-Piston Valve
SKU:ATK-1aadbe
Reliable medium-pressure solenoid valves for versatile fluid applications. Pilot-operated bronze valves with pressure range of 5 to 500 psig (0.4 to 34.5 bar).
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Atkomatic 4000/5000 Series Solenoid Valves - Bronze Pilot-Piston Valve
$289.99
Quantity: 1
Claim Your Seller Account
Atkomatic 4000/5000 Series Solenoid Valves - Bronze Pilot-Piston Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 4000/5000 Series Solenoid Valves offer reliable medium pressure control with a pressure range of 5 to 500 psig (0.4 to 34.5 bar), suitable for a variety of fluid applications. These bronze valves are designed for pressures up to 500 psig (0.4 to 34.5 bar) and are pilot-operated, requiring a minimum pressure differential of 5 psig (0.4 bar). Featuring full-ported valves, these solenoid valves can be used with gases or liquids, including steam and cryogenics, that are not harmful to bronze. With pipe sizes ranging from 1/4" to 1 1/2" NPT for the 4000 Series and 2" to 3" NPT for the 5000 Series, these valves are configurable for various applications. They are available in normally open and normally closed versions, with fluid temperatures ranging from -423°F to +500°F (-253°C to +260°C).
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
3/4 in
Specifications Connection Type
Female NPT
Specifications Cv
8.4

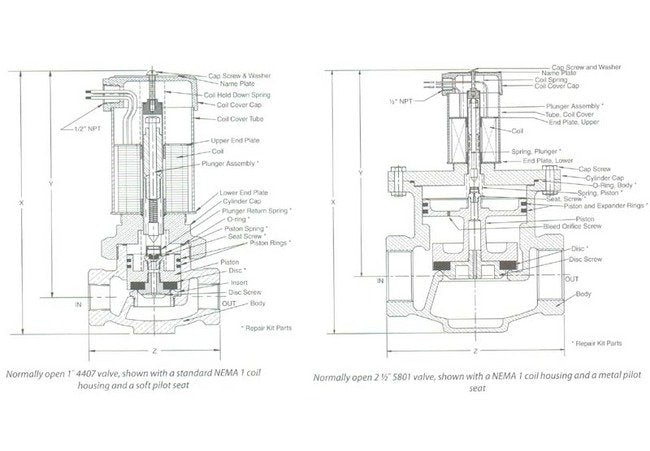

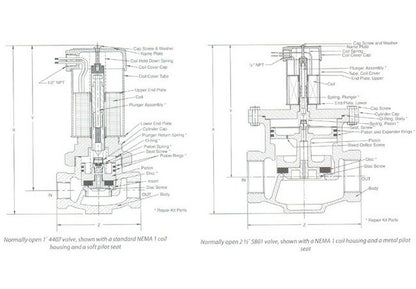

Specifications Dim X
9 7/16 in
Specifications Dim Y
8.1875 in
Specifications Dim Z
4 in
Specifications Fluid Media Type
Liquid up to 40 SUS
Specifications Main Seat Orifice
1 in
Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Open
Specifications Seat Seal Material
Viton®
Specifications Series
4000
Specifications Temperature Range
-15 to 400 ºF | -29 to 204 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
