Atkomatic 5000 Series Bronze Solenoid Valve
Atkomatic 5000 Series Bronze Solenoid Valve
SKU:ATK-094e3f
High-performance Atkomatic 5000 Series Bronze Solenoid Valve with Viton® seals for medium pressure applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Atkomatic 5000 Series Bronze Solenoid Valve
$349.99
Quantity: 1
Claim Your Seller Account
Atkomatic 5000 Series Bronze Solenoid Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 5000 Series Bronze Solenoid Valve is a pilot-piston valve designed for medium pressure applications. With a pressure range of 5 to 500 psig and a Cv of 71.0, this valve is configurable for a variety of fluid types, making it suitable for use with gases, liquids, steam, and cryogenics. The valve features a bronze body, Viton® seat & seal material, and operates in a temperature range of -15 to 400 °F, ensuring reliable performance in diverse environments. Additionally, it offers NPT connections, a normally closed position, and Class H coil insulation for extreme temperature conditions.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
3 in
Specifications Connection Type
Female NPT
Specifications Cv
71.0

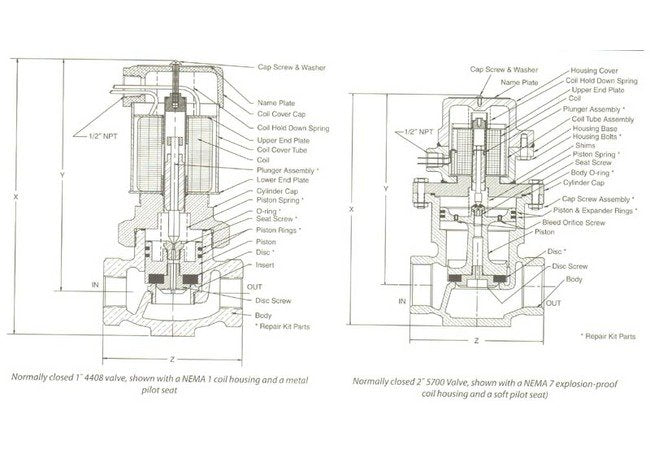

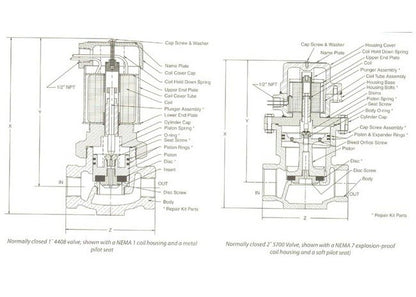

Specifications Dim X
14 3/8 in
Specifications Dim Y
10 1/2 in
Specifications Dim Z
8 1/2 in
Specifications Fluid Media Type
Gas
Specifications Main Seat Orifice
3 in
Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Viton®
Specifications Series
5000
Specifications Temperature Range
-15 to 400 ºF | -29 to 204 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
