Atkomatic 5000 Series Bronze Solenoid Valve, 3" NPT
Atkomatic 5000 Series Bronze Solenoid Valve, 3" NPT
SKU:ATK-b19a8d
Atkomatic 5000 Series high-performance bronze solenoid valve for medium-pressure fluid control. Cv 71.0, operating pressure 5-500 psig, temperature range -15 to 400°F.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Atkomatic 5000 Series Bronze Solenoid Valve, 3" NPT
$249.99
Quantity: 1
Claim Your Seller Account
Atkomatic 5000 Series Bronze Solenoid Valve, 3" NPT
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 5000 Series Solenoid Valve is a high-performance, medium-pressure valve designed for a variety of fluid applications. Constructed from durable bronze with Viton® seat and seal materials, this valve boasts a wide temperature range from -15 to 400°F. With a Cv of 71.0 and operating pressure range from 5 to 500 psig, it offers reliable control for liquids with viscosities ranging from 41 to 150 SUS. Suitable for both normally open and normally closed configurations, this valve is a versatile solution meeting the stringent standards of institutional and government procurement.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
3 in
Specifications Connection Type
Female NPT
Specifications Cv
71.0

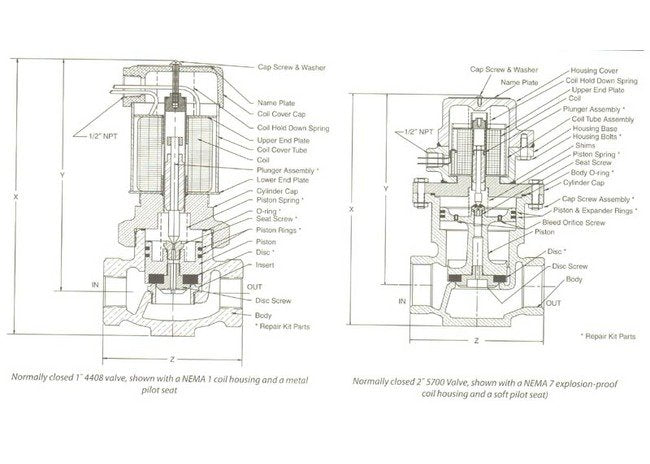

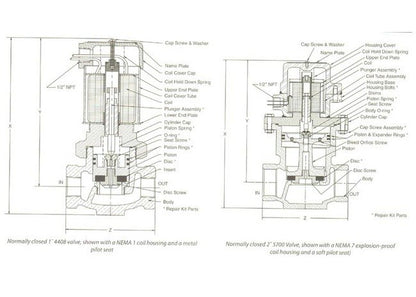

Specifications Dim X
14 3/8 in
Specifications Dim Y
10 1/2 in
Specifications Dim Z
8 1/2 in
Specifications Fluid Media Type
Liquid from 41 SUS to 150 SUS
Specifications Main Seat Orifice
3 in
Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Viton®
Specifications Series
5000
Specifications Temperature Range
-15 to 400 ºF | -29 to 204 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
