Atkomatic 5000 Series Bronze Solenoid Valve
Atkomatic 5000 Series Bronze Solenoid Valve
SKU:ATK-64bd03
High-performance Atkomatic 5000 Series Bronze Solenoid Valve for medium pressure applications, featuring Viton® seals, and Class H coil insulation. Wide temp range of -15 to 400°F.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Atkomatic 5000 Series Bronze Solenoid Valve
$189.99
Quantity: 1
Claim Your Seller Account
Atkomatic 5000 Series Bronze Solenoid Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 5000 Series Bronze Solenoid Valve is a high-performance, pilot-operated valve designed for medium pressure applications. With a pressure range of 5 to 500 psig, this valve is suitable for various fluid types, including gas, liquid, steam, and cryogenics. Featuring a full-ported design, this valve ensures efficient flow control with Cv ranging from 1.4 to 71. Equipped with Viton® seat and seal materials, this valve offers robust sealing properties. The valve is configurable in normally closed mode and operates within a wide temperature range of -15 to 400°F. With compliance to Class H coil insulation rating and NEMA standards, this valve is ideal for demanding industrial environments.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
2 in
Specifications Connection Type
Female NPT
Specifications Cv
43.0

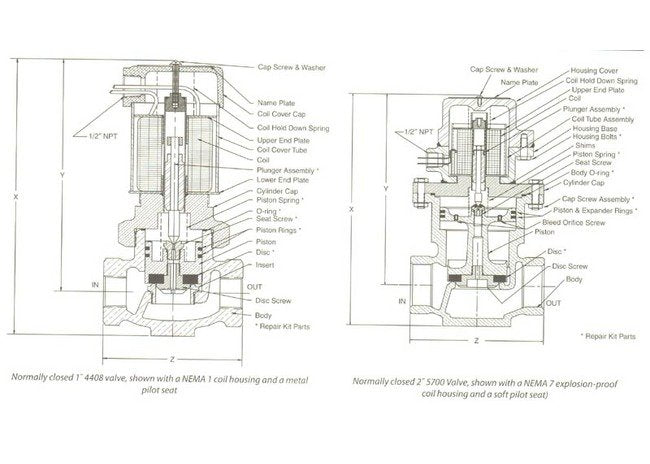

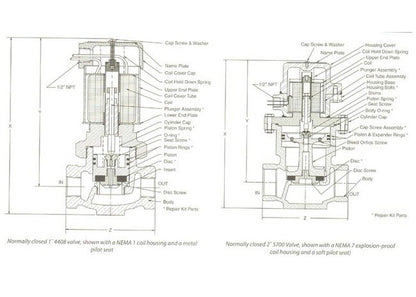

Specifications Dim X
12 5/8 in
Specifications Dim Y
9 3/4 in
Specifications Dim Z
6 1/8 in
Specifications Fluid Media Type
Gas
Specifications Main Seat Orifice
2 in
Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Viton®
Specifications Series
5000
Specifications Temperature Range
-15 to 400 ºF | -29 to 204 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
