Atkomatic 5000 Series Cryogenic Solenoid Valve
Atkomatic 5000 Series Cryogenic Solenoid Valve
SKU:ATK-1d9823
Premium Atkomatic 5000 Series Cryogenic Solenoid Valve - Ideal for medium pressure applications with bronze construction & Teflon® seals.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Atkomatic 5000 Series Cryogenic Solenoid Valve
$249.99
Quantity: 1
Claim Your Seller Account
Atkomatic 5000 Series Cryogenic Solenoid Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 5000 Series Cryogenic Solenoid Valve is a high-performance solution designed for medium pressure applications, offering a wide range of features to meet diverse fluid requirements. Constructed with bronze material, Teflon® seat & seal, and a main seat orifice of 3 inches, this valve ensures durability and reliability. With an operating pressure range of 5 to 500 psig, temperature range from -423 to 500 °F, and a Cv of 71.0, it excels in handling cryogenic fluids with precision. The valve's normally open configuration and single-wound molded coil with Class H insulation make it ideal for demanding industrial settings.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
3 in
Specifications Connection Type
Female NPT
Specifications Cv
71.0

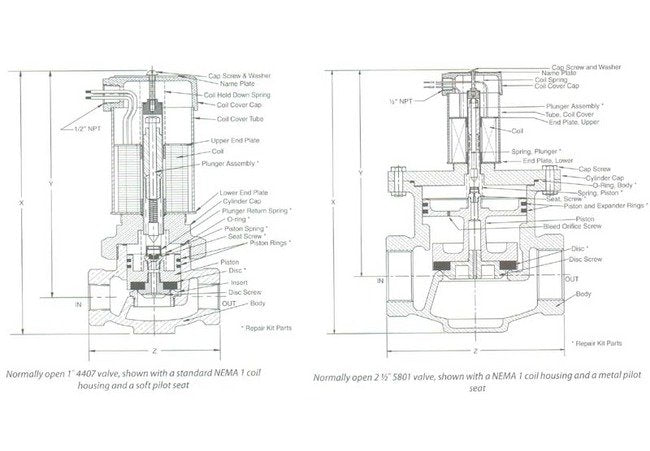

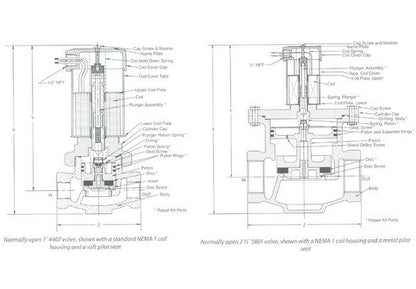

Specifications Dim X
15 1/2 in
Specifications Dim Y
11 5/8 in
Specifications Dim Z
8 1/2 in
Specifications Fluid Media Type
Cryogenic
Specifications Main Seat Orifice
3 in
Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Open
Specifications Seat Seal Material
Teflon®
Specifications Series
5000
Specifications Temperature Range
-423 to 500 ºF | -253 to 260 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
