Atkomatic 5000 Series High-Pressure Bronze Solenoid Valve
Atkomatic 5000 Series High-Pressure Bronze Solenoid Valve
SKU:ATK-276d76
Enhance fluid control with the Atkomatic 5000 Series High-Pressure Bronze Solenoid Valve. Operating pressures from 5 to 500 psig, temperature range -65 to 275°F, Cv of 71.0, and Class H coil for superior performance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Atkomatic 5000 Series High-Pressure Bronze Solenoid Valve
$299.99
Quantity: 1
Claim Your Seller Account
Atkomatic 5000 Series High-Pressure Bronze Solenoid Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 5000 Series Solenoid Valve is a top-of-the-line solution for medium to high-pressure liquid applications, featuring a robust bronze construction and Buna N seat & seal material. With an impressive operating pressure range of 5 to 500 psig, this valve is ideal for a variety of fluid types, including steam and cryogenics. It offers a wide temperature range from -65 to 275 °F and a Cv of 71.0 for efficient flow control. Equipped with a Class H coil and NEMA standard coil housing, this valve ensures reliable performance even in extreme conditions.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
3 in
Specifications Connection Type
Female NPT
Specifications Cv
71.0

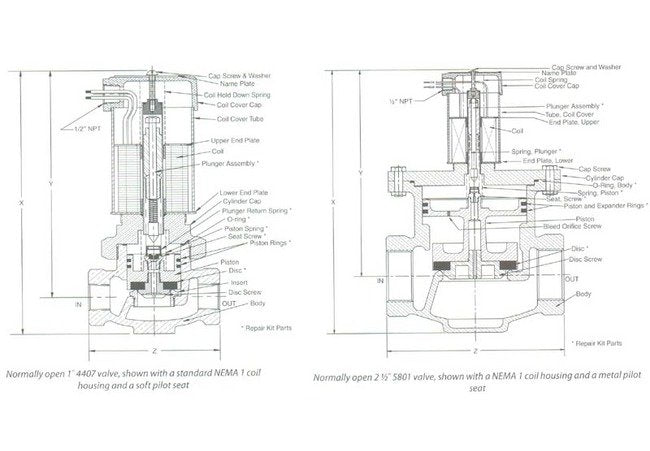

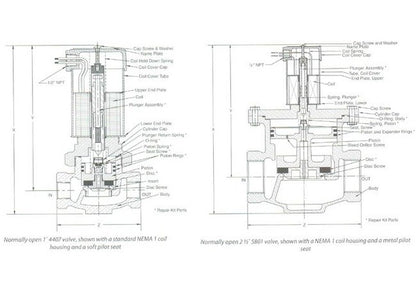

Specifications Dim X
15 1/2 in
Specifications Dim Y
11 5/8 in
Specifications Dim Z
8 1/2 in
Specifications Fluid Media Type
Liquid from 41 SUS to 150 SUS
Specifications Main Seat Orifice
3 in
Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Open
Specifications Seat Seal Material
Buna N
Specifications Series
5000
Specifications Temperature Range
-65 to 275 ºF | -54 to 135 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
