Atkomatic 5000 Series High-Pressure Solenoid Valve
Atkomatic 5000 Series High-Pressure Solenoid Valve
SKU:ATK-916322
High-pressure solenoid valve for steam & fluid applications, bronze body, Teflon® seals, Class H coil insulation.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Atkomatic 5000 Series High-Pressure Solenoid Valve
$249.99
Quantity: 1
Claim Your Seller Account
Atkomatic 5000 Series High-Pressure Solenoid Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 5000 Series Solenoid Valve is a high-pressure, pilot-operated valve designed for a pressure range of 5 to 200 psig, making it ideal for medium to high-pressure fluid applications. Constructed with bronze material and Teflon® seat & seal, this valve ensures durability and compatibility with a variety of fluids including steam. With a Cv of 63.0 and a wide temperature range of -423 to 500°F, this valve offers reliable performance in extreme conditions. Equipped with Class H coil insulation, NEMA 4 coil housing, and 316 stainless steel trim, it meets stringent industry standards for quality and safety.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
2 1/2 in
Specifications Connection Type
Female NPT
Specifications Cv
63.0

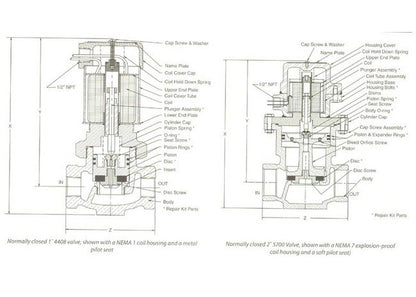

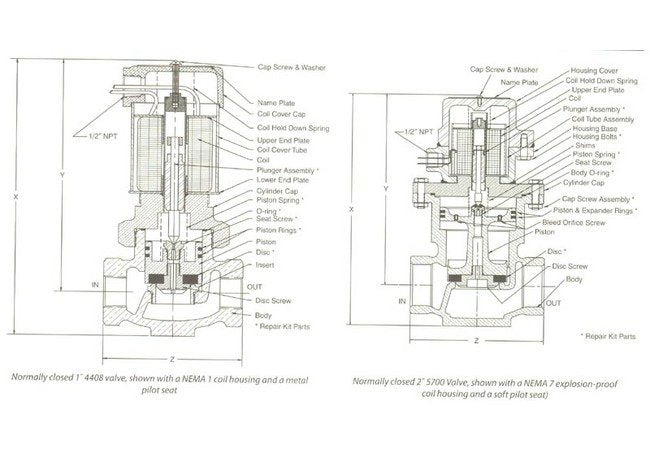

Specifications Dim X
14 3/8 in
Specifications Dim Y
10 1/2 in
Specifications Dim Z
8 1/2 in
Specifications Fluid Media Type
Steam
Specifications Main Seat Orifice
3 in
Specifications Operating Pressure
5 to 200 psig | 0.4 to 13.8 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Teflon®
Specifications Series
5000
Specifications Temperature Range
-423 to 500 ºF | -253 to 260 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
