Atkomatic 5000 Series Medium Pressure Solenoid Valve
Atkomatic 5000 Series Medium Pressure Solenoid Valve
SKU:ATK-dab5d3
Reliable Atkomatic 5000 Series Solenoid Valve for medium pressure liquid control applications. Durable bronze construction, Viton® seals, and 3-inch main seat orifice for efficient flow control.
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
Atkomatic 5000 Series Medium Pressure Solenoid Valve
$239.99
Quantity: 1
Claim Your Seller Account
Atkomatic 5000 Series Medium Pressure Solenoid Valve
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 5000 Series Solenoid Valve is a versatile and durable solution for medium pressure fluid control applications. Constructed from high-quality bronze with Viton® seat and seal material, this valve ensures reliable performance in a wide range of operating pressures (5 to 500 psig | 0.4 to 34.5 bar) and temperatures (-15 to 400 °F | -29 to 204 °C). With a main seat orifice of 3 inches and a Cv of 63.0, it offers efficient flow control. This normally open valve is designed for liquid media up to 40 SUS, making it suitable for various industrial settings. Its compliance with industry standards ensures reliability and performance consistency for institutional buyers.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
2 1/2 in
Specifications Connection Type
Female NPT
Specifications Cv
63.0

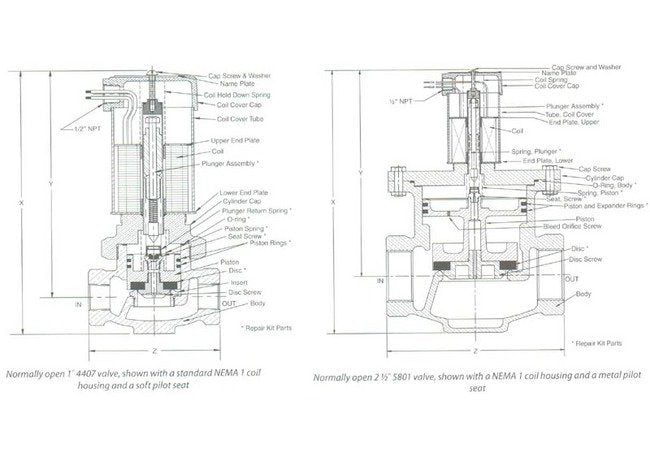

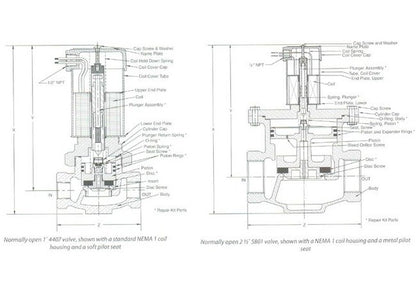

Specifications Dim X
15 1/2 in
Specifications Dim Y
11 5/8 in
Specifications Dim Z
8 1/2 in
Specifications Fluid Media Type
Liquid up to 40 SUS
Specifications Main Seat Orifice
3 in
Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Open
Specifications Seat Seal Material
Viton®
Specifications Series
5000
Specifications Temperature Range
-15 to 400 ºF | -29 to 204 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
