The Atkomatic 5000 Series Solenoid Valve is a robust bronze valve designed for medium pressure applications, with a pressure range of 5 to 500 psig (0.4 to 34.5 bar). This pilot-operated valve offers full port design, suitable for gases and liquids with a maximum viscosity of 200 SSU. With a wide range of fluid compatibility including steam and cryogenics, this valve is configurable to meet various fluid requirements. It features Cv from 1.4 to 71, with options for normally open or normally closed versions. The valve is equipped with high-quality seat and seal materials such as Viton®, ensuring reliable performance across a temperature range from -15 to 400°F (-29 to 204°C). Suitable for diverse applications, this valve is a dependable choice for institutional and industrial use.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
2 1/2 in
Specifications Connection Type
Female NPT
Specifications Cv
63.0

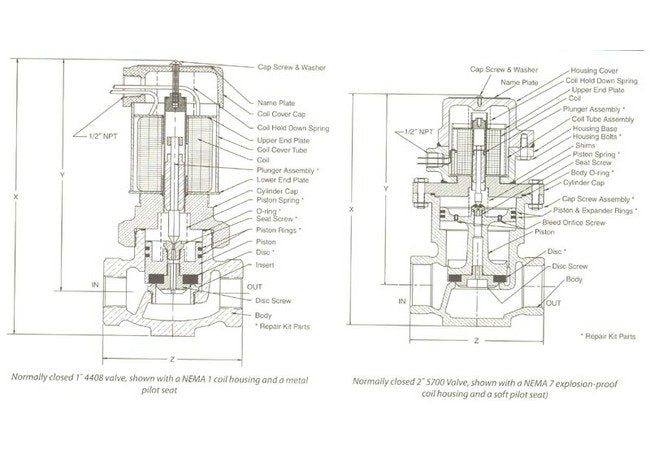

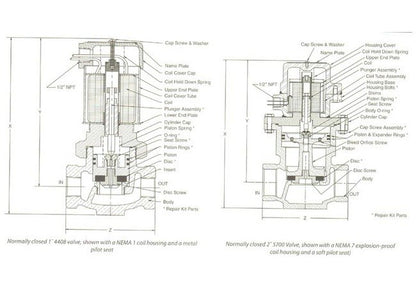

Specifications Dim X
14 3/8 in
Specifications Dim Y
10 1/2 in
Specifications Dim Z
8 1/2 in
Specifications Fluid Media Type
Gas
Specifications Main Seat Orifice
3 in
Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Viton®
Specifications Series
5000
Specifications Temperature Range
-15 to 400 ºF | -29 to 204 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
