Atkomatic 5000 Series Solenoid Valve - Bronze, 2 1/2 in, Normally Open

Name: Atkomatic 5000 Series Solenoid Valve - Bronze, 2 1/2 in, Normally Open
Brand: Circle Valve Technologies Inc.
SKU: ATK-28f95f
Price: 349.99 USD
Availability: OutOfStock

SKU:ATK-28f95f

Upgrade your fluid control system with Atkomatic 5000 Series Solenoid Valve for precise liquid handling.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your fluid control system with the Atkomatic 5000 Series Solenoid Valve. Crafted from bronze with EPR seat & seal materials, this valve is designed for liquid applications within a wide temperature range (-65 to 300°F). With a Cv of 63.0 and operating pressures between 5 to 500 psig, this valve delivers reliable performance. The coil features Class H insulation, making it suitable for temperatures up to 180°C. Available in normally open configuration, this valve is a versatile solution for various institutional and government procurement needs.

Product Specifications

Specifications Body Material

Bronze

Specifications Coil Housing

Standard

Specifications Coil Insulation Rating

Class H (180Â° C)

Specifications Coil Type

Single Wound Molded

Specifications Connection Size

2 1/2 in

Specifications Connection Type

Female NPT

Specifications Cv

63.0

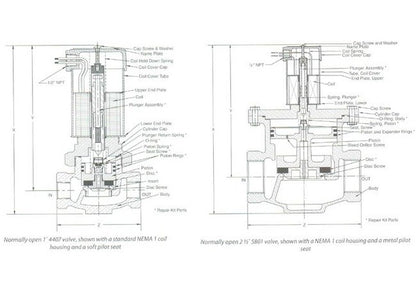

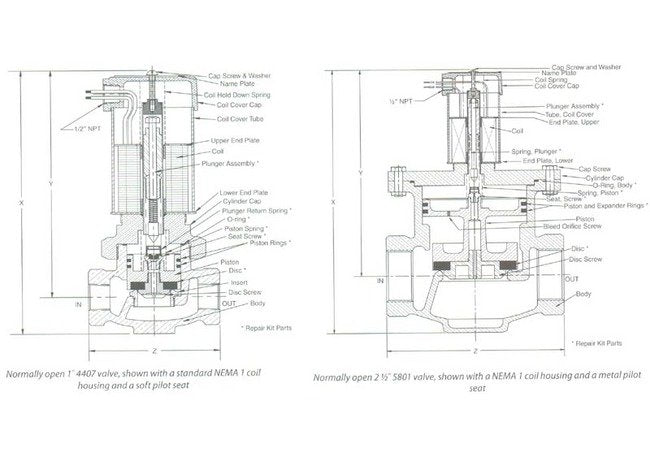

Specifications Dim X

15 1/2 in

Specifications Dim Y

11 5/8 in

Specifications Dim Z

8 1/2 in

Specifications Fluid Media Type

Liquid from 41 SUS to 150 SUS

Specifications Main Seat Orifice

3 in

Specifications Operating Pressure

5 to 500 psig | 0.4 to 34.5 bar

Specifications Position Of Valve De Energized

Normally Open

Specifications Seat Seal Material

EPR

Specifications Series

5000

Specifications Temperature Range

-65 to 300 ÂºF | -54 to 149 ÂºC

Specifications Type

Solenoid Valve

Specifications Voltage

115 VAC
