Atkomatic 5000 Series Solenoid Valve - High Pressure Bronze Valve
Atkomatic 5000 Series Solenoid Valve - High Pressure Bronze Valve
SKU:ATK-b5e6b8
High-pressure bronze solenoid valve for versatile fluid applications. Operating pressure: 5-500 psig. Temperature range: -65 to 300°F. Cv: 71.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Atkomatic 5000 Series Solenoid Valve - High Pressure Bronze Valve
$249.99
Quantity: 1
Claim Your Seller Account
Atkomatic 5000 Series Solenoid Valve - High Pressure Bronze Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 5000 Series Solenoid Valve is a high-pressure, bronze valve designed for medium-pressure applications. With an operating pressure range of 5 to 500 psig (0.4 to 34.5 bar) and a Cv of 71, this valve is suitable for various fluid types, including liquids up to 40 SUS. It features a full-ported design, pilot operation, and a wide temperature range from -65 to 300°F (-54 to 149°C). The valve is configurable with multiple seat and seal materials, making it versatile for different fluid types and pressures. Additionally, it meets stringent industry standards for reliability and performance.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
3 in
Specifications Connection Type
Female NPT
Specifications Cv
71.0

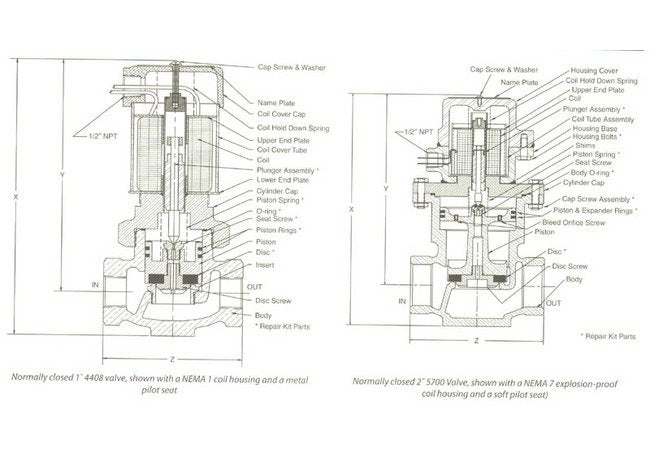

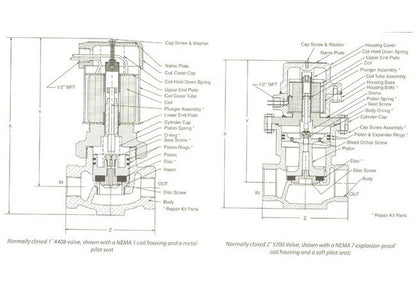

Specifications Dim X
14 3/8 in
Specifications Dim Y
10 1/2 in
Specifications Dim Z
8 1/2 in
Specifications Fluid Media Type
Liquid up to 40 SUS
Specifications Main Seat Orifice
3 in
Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
EPR
Specifications Series
5000
Specifications Temperature Range
-65 to 300 ºF | -54 to 149 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
