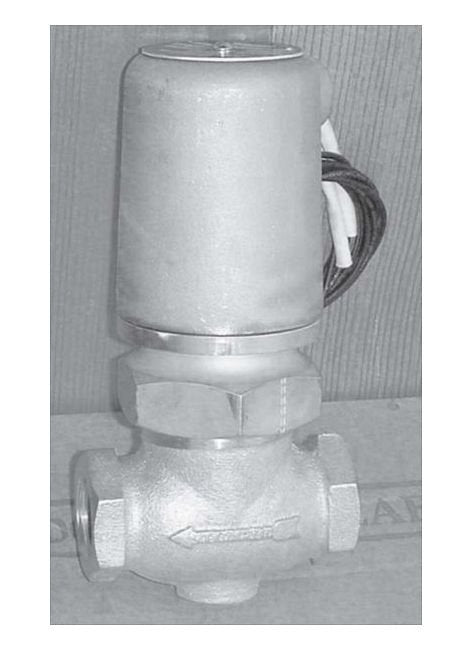

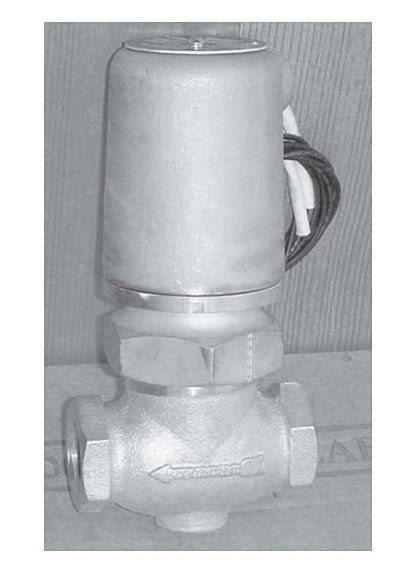

The Atkomatic 6000 Series Bronze Solenoid Valve is a pilot-piston valve designed for medium pressure applications, with a pressure range of 0 to 1500 psig. Suitable for a variety of fluid types, it features a full port design, fluid temperature tolerance from -423ºF to +500ºF, and compatibility with gases, liquids, steam, and cryogenic substances. The valve comes in sizes ranging from 1/4" to 1 1/2" and is configurable in both normally open and normally closed versions. With options for different seat seal and body seal materials, as well as coil housings meeting NEMA standards for various environments, this valve offers versatility and reliability for institutional and industrial use.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1 in
Specifications Connection Type
Female NPT
Specifications Cv
9.5

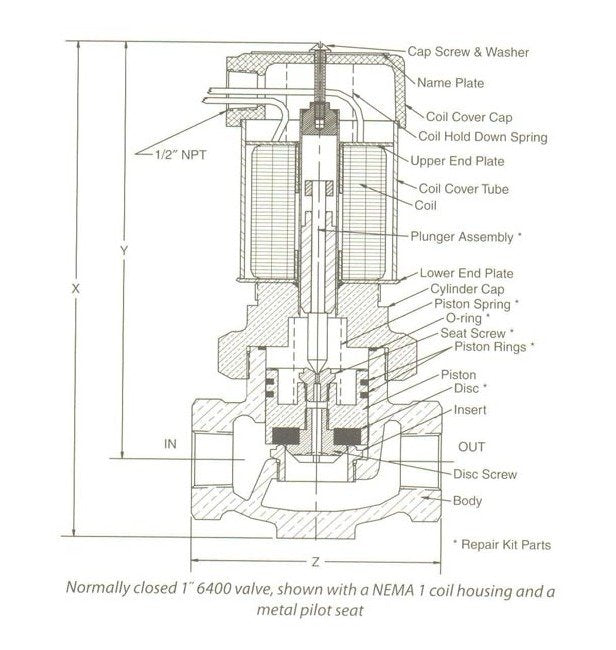

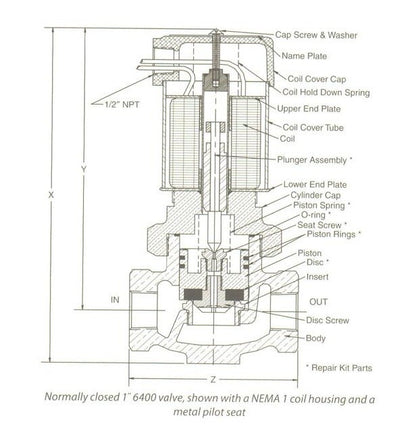

Specifications Dim X
8.25 in
Specifications Dim Y
7 in
Specifications Dim Z
4 in
Specifications Fluid Media Type
Liquid up to 40 SUS
Specifications Main Seat Orifice
1 in

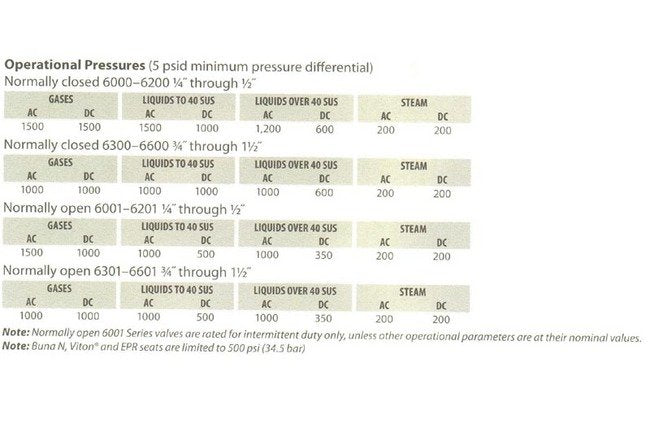

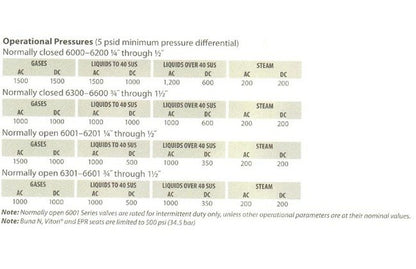

Specifications Operating Pressure
5 to 1000 psig
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Teflon®
Specifications Series
6000
Specifications Temperature Range
-423 to 500 ºF | -253 to 260 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
110 VAC
