Atkomatic 6000 Series Bronze Solenoid Valve
Atkomatic 6000 Series Bronze Solenoid Valve
SKU:ATK-bbdc7e
Reliable Atkomatic 6000 Series Bronze Solenoid Valve for medium-pressure liquids. Operates at 5-500 psig, -15 to 400 ºF. Meets procurement standards.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Atkomatic 6000 Series Bronze Solenoid Valve
$149.99
Quantity: 1
Claim Your Seller Account
Atkomatic 6000 Series Bronze Solenoid Valve
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

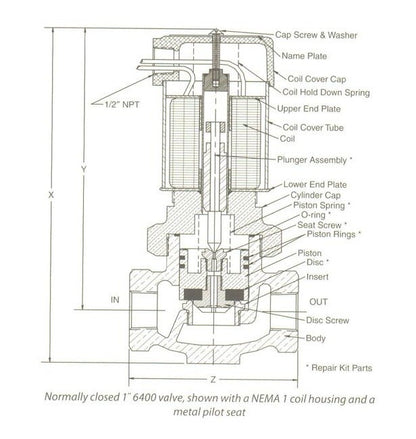

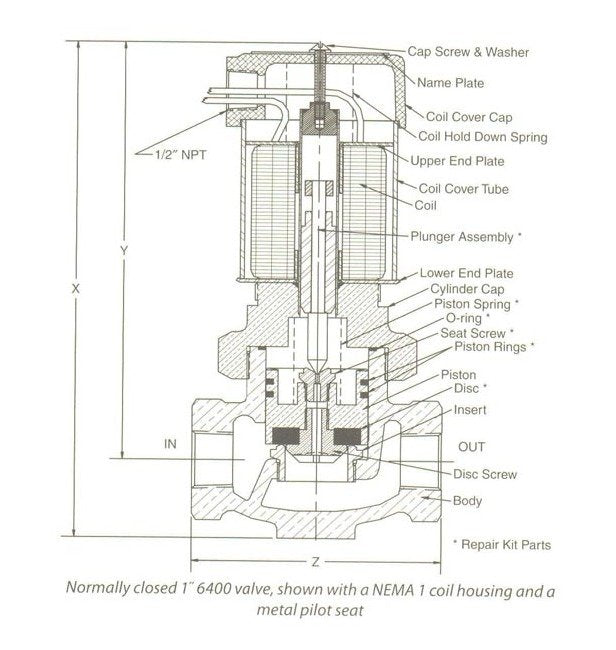

The Atkomatic 6000 Series Solenoid Valve is a reliable solution for medium-pressure fluid applications, featuring a bronze body, Viton® seat & seal, and a .375-inch main seat orifice. With an operating pressure range of 5 to 500 psig and a temperature range from -15 to 400 ºF, this valve is designed for versatility and durability. It meets stringent institutional procurement standards, making it ideal for government and industrial use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1/4 in
Specifications Connection Type
Female NPT
Specifications Cv
1.40
Specifications Dim X
7 1/8 in
Specifications Dim Y
6 1/4 in
Specifications Dim Z
2.6875 in
Specifications Fluid Media Type
Liquid from 41 SUS to 150 SUS
Specifications Main Seat Orifice
.375 in
Specifications Operating Pressure
5 to 500 psig
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Viton®
Specifications Series
6000
Specifications Temperature Range
-15 to 400 ºF | -29 to 204 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
110 VAC
