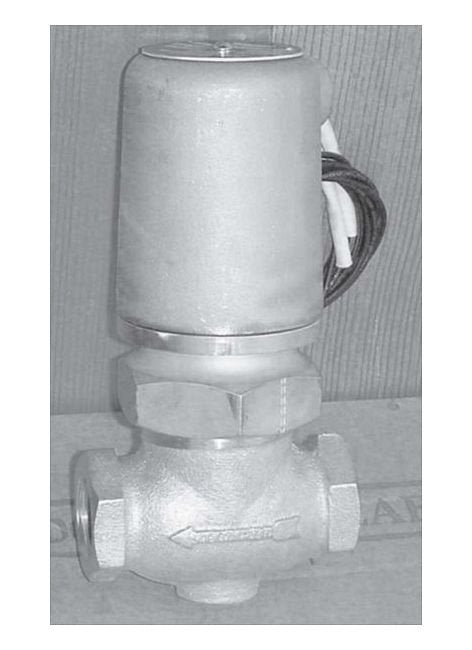

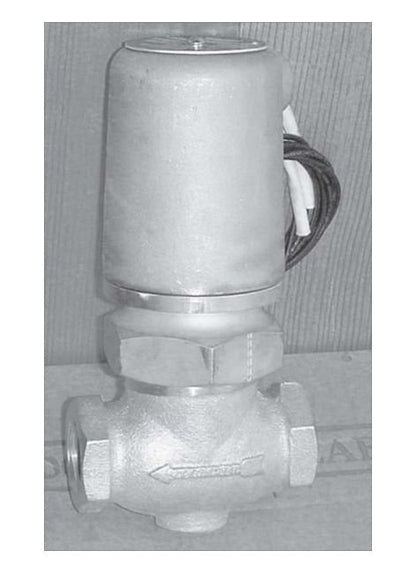

Atkomatic 6000 Series Solenoid Valves - Bronze, 1 1/4" NPT, Normally Open
Atkomatic 6000 Series Solenoid Valves - Bronze, 1 1/4" NPT, Normally Open
SKU:ATK-853f44
Premium Atkomatic 6000 Series Solenoid Valve - Ideal for medium pressure, liquid applications. Bronze construction, reliable Buna N seals, and Class H coil insulation.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Atkomatic 6000 Series Solenoid Valves - Bronze, 1 1/4" NPT, Normally Open
$199.99
Quantity: 1
Claim Your Seller Account
Atkomatic 6000 Series Solenoid Valves - Bronze, 1 1/4" NPT, Normally Open
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 6000 Series Solenoid Valves offer exceptional performance for medium pressure fluid applications, with a pressure range of 5 to 500 psig. Constructed from high-quality bronze with Buna N seat & seal material, these valves can handle liquid up to 40 SUS. Featuring a main seat orifice of 1 1/2", and operating reliably in temperatures ranging from -65 to 275 ºF, these valves ensure precise control and durability. With Class H coil insulation, these solenoid valves are designed for optimal efficiency and longevity in diverse environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1 1/4 in
Specifications Connection Type
Female NPT
Specifications Cv
19.5

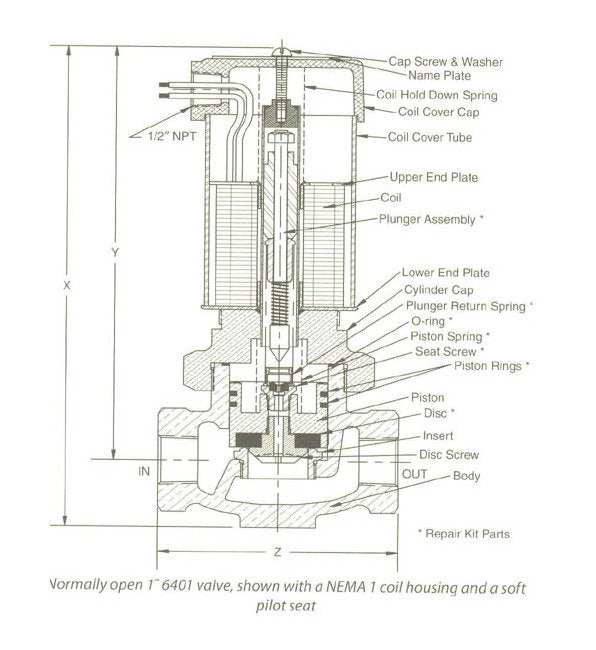

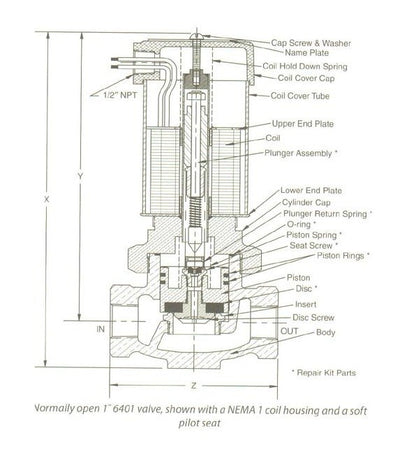

Specifications Dim X
11 in
Specifications Dim Y
9 3/16 in
Specifications Dim Z
5 1/16 in
Specifications Fluid Media Type
Liquid up to 40 SUS
Specifications Main Seat Orifice
1 1/2 in

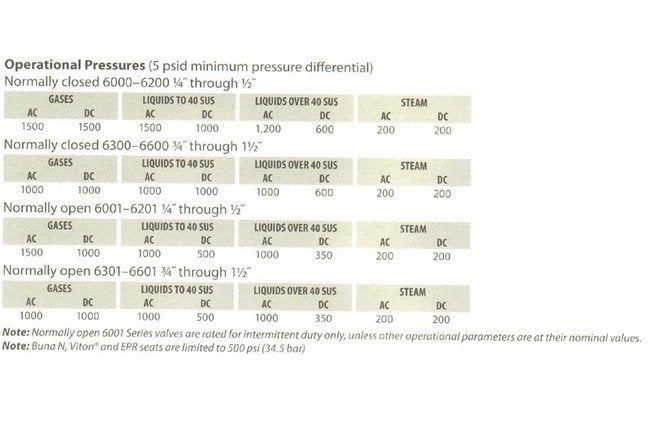

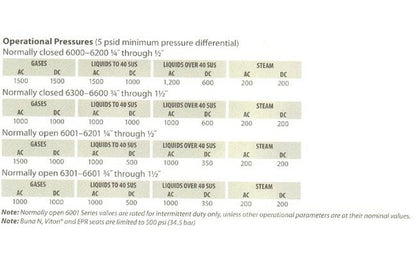

Specifications Operating Pressure
5 to 500 psig
Specifications Position Of Valve De Energized
Normally Open
Specifications Seat Seal Material
Buna N
Specifications Series
6000
Specifications Temperature Range
-65 to 275 ºF | -54 to 135 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
110 VAC
