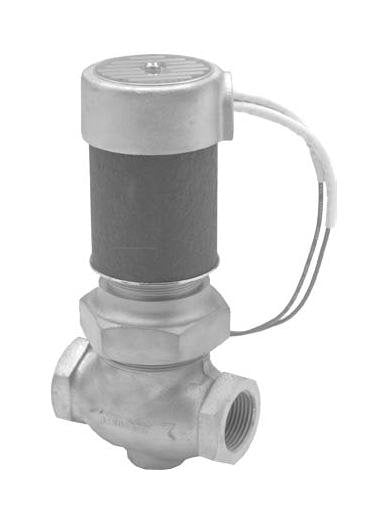

Atkomatic 8000 Series High-Pressure Solenoid Valves
Atkomatic 8000 Series High-Pressure Solenoid Valves
SKU:ATK-be18ef
High-pressure Atkomatic 8000 Series Solenoid Valves with stainless steel construction and Teflon® seals for durability and corrosion resistance.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Atkomatic 8000 Series High-Pressure Solenoid Valves
$149.99
Quantity: 1
Claim Your Seller Account
Atkomatic 8000 Series High-Pressure Solenoid Valves
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 8000 Series Solenoid Valves are designed for high-pressure applications, with a pressure range of 5 to 1500 psig. Constructed from stainless steel with Teflon® seat and seal materials, these valves offer exceptional corrosion resistance and durability. The valves are suitable for a wide range of fluids including air, gases, liquids, hydraulic fluids, steam, cryogenic fluids, and corrosive fluids. With a temperature range from -423 to +500°F, these valves maintain optimal performance in extreme conditions. Certified to meet industry-specific standards, these solenoid valves are ideal for both consumer and institutional buyers looking for reliability and efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1/4 in
Specifications Connection Type
Female NPT
Specifications Cv
1.10

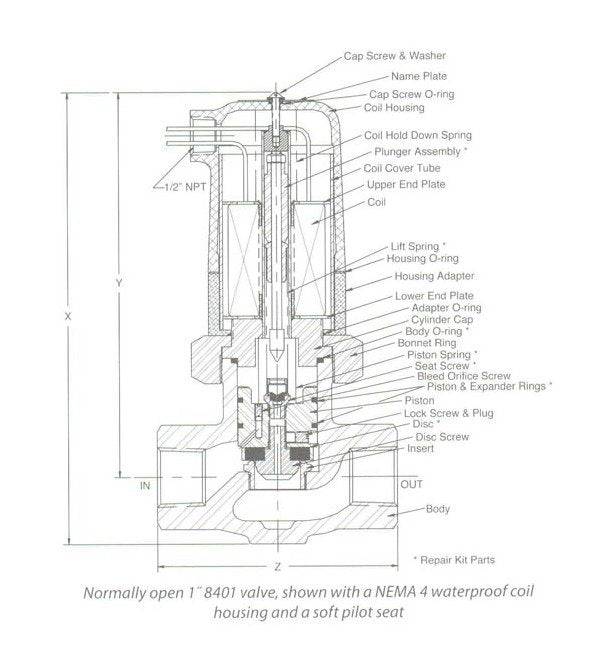

Specifications Dim X
8 1/8 in
Specifications Dim Y
7 5/16 in
Specifications Dim Z
3 in
Specifications Fluid Media Type
Gas
Specifications Main Seat Orifice
.375 in

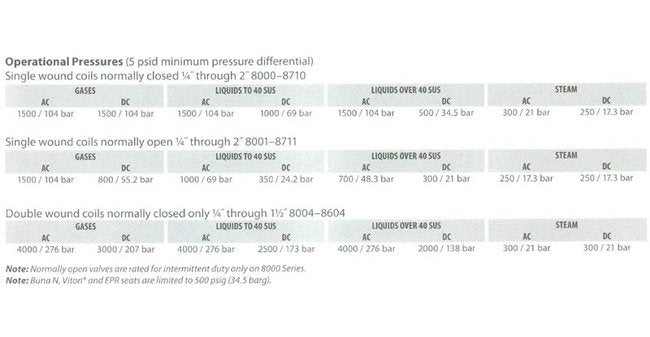

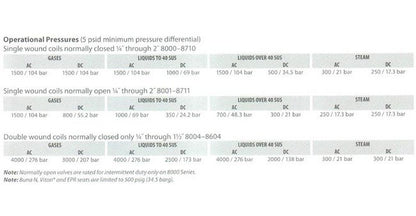

Specifications Operating Pressure
5 to 1500 psig | 0.4 to 104 bar
Specifications Position Of Valve De Energized
Normally Open
Specifications Seat Seal Material
Teflon®
Specifications Series
8000
Specifications Temperature Range
-423 to 500 ºF | -253 to 260 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
