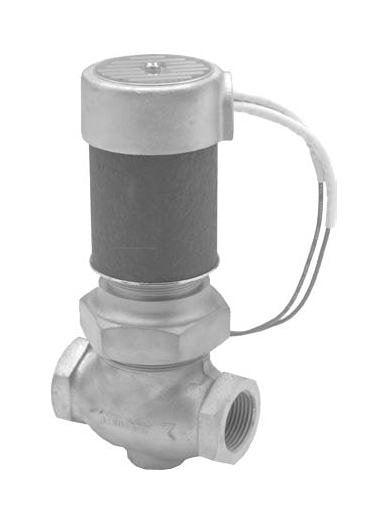

Atkomatic 8000 Series Stainless Steel Solenoid Valve
Atkomatic 8000 Series Stainless Steel Solenoid Valve
SKU:ATK-a4a8e7
Premium stainless steel solenoid valve for high-pressure applications, reliable performance in diverse environments.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Atkomatic 8000 Series Stainless Steel Solenoid Valve
$349.99
Quantity: 1
Claim Your Seller Account
Atkomatic 8000 Series Stainless Steel Solenoid Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 8000 Series Solenoid Valve is a robust solution designed for high-pressure applications, with a pressure range of 5 to 500 psig. Constructed from premium stainless steel, this valve is built to last and can handle a variety of fluids including air, gases, liquids, and corrosive substances. With a temperature range of -15 to 400°F, Viton® seat and seal materials, and Class H coil insulation, this valve ensures reliable performance in diverse environments. Available in a normally closed configuration, this valve also features removable stainless steel body inserts, making it versatile and easy to maintain. Whether for industrial, commercial, or institutional use, the Atkomatic 8000 Series Solenoid Valve delivers durability, precision, and efficiency.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1 1/4 in
Specifications Connection Type
Female NPT
Specifications Cv
19.5
Specifications Dim X
9.5 in
Specifications Dim Y
7 5/8 in
Specifications Dim Z
5 7/8 in
Specifications Fluid Media Type
Liquid up to 40 SUS
Specifications Main Seat Orifice
1 1/2 in
Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Viton®
Specifications Series
8000
Specifications Temperature Range
-15 to 400 ºF | -29 to 204 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
