Atkomatic 8000 Series Stainless Steel Solenoid Valve
Atkomatic 8000 Series Stainless Steel Solenoid Valve
SKU:ATK-617df0
High-pressure stainless steel solenoid valve for diverse fluid applications. Removable body inserts, versatile seal options.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Atkomatic 8000 Series Stainless Steel Solenoid Valve
$189.99
Quantity: 1
Claim Your Seller Account
Atkomatic 8000 Series Stainless Steel Solenoid Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 8000 Series Solenoid Valve offers high-pressure performance, with a pressure range from 5 to 4000 psig, making it suitable for a wide variety of fluid applications. Constructed with durable stainless steel materials, this valve ensures reliability and longevity. With options for normally open or normally closed versions, fluid temperatures ranging from -423º F to +500º F, and compatibility with various fluids including air, liquids, steam, and corrosive fluids, this valve is versatile and adaptable to diverse operational needs. The valve also features removable body inserts, a variety of seal and seat materials, and coil housing options for different environmental requirements.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Double Wound (Relay Required)
Specifications Connection Size
1 in
Specifications Connection Type
Female NPT
Specifications Cv
12.5
Specifications Dim X
9.1875 in
Specifications Dim Y
7.6875 in
Specifications Dim Z
5.25 in
Specifications Fluid Media Type
Liquid up to 40 SUS
Specifications Main Seat Orifice
1 in

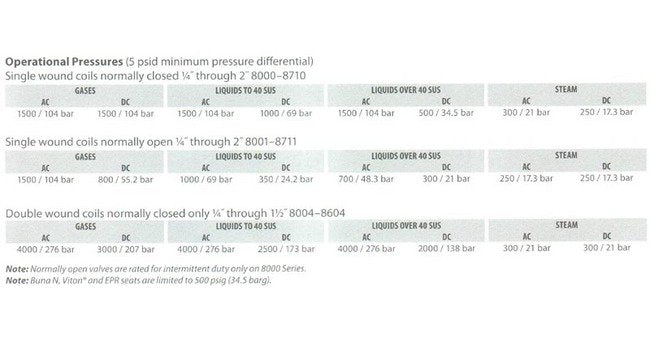

Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Viton®
Specifications Series
8000
Specifications Temperature Range
-15 to 400 ºF | -29 to 204 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
