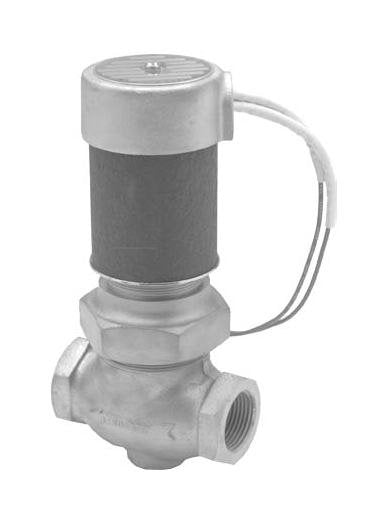

Atkomatic 8000 Series Stainless Steel Solenoid Valve
Atkomatic 8000 Series Stainless Steel Solenoid Valve
SKU:ATK-0e9ae2
Premium stainless steel solenoid valve with Teflon seals, wide fluid compatibility, and extreme temperature resistance.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Atkomatic 8000 Series Stainless Steel Solenoid Valve
$349.99
Quantity: 1
Claim Your Seller Account
Atkomatic 8000 Series Stainless Steel Solenoid Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 8000 Series Solenoid Valve is a premium quality, high-pressure valve designed for a variety of fluid applications. With a pressure range of 5 to 1000 psig, stainless steel construction, and Teflon seals, this valve ensures reliability in demanding environments. It features full port design, wide fluid compatibility, and can handle extreme temperatures from -423 to 500°F. Suitable for use with air, gases, liquids, and more, this valve offers exceptional performance and longevity.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
2 in
Specifications Connection Type
Female NPT
Specifications Cv
45.0
Specifications Dim X
13 in
Specifications Dim Y
10 5/8 in
Specifications Dim Z
7 in
Specifications Fluid Media Type
Liquid from 41 SUS to 150 SUS
Specifications Main Seat Orifice
2 in
Specifications Operating Pressure
5 to 1000 psig | 0.4 to 69 bar
Specifications Position Of Valve De Energized
Normally Open
Specifications Seat Seal Material
Teflon®
Specifications Series
8000
Specifications Temperature Range
-423 to 500 ºF | -253 to 260 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
