Atkomatic 8000 Series Stainless Steel Solenoid Valve
Atkomatic 8000 Series Stainless Steel Solenoid Valve
SKU:ATK-5053f8
Atkomatic 8000 Series Stainless Steel Solenoid Valve - Ideal for high-pressure fluid applications. Reliable, durable, and versatile design.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Atkomatic 8000 Series Stainless Steel Solenoid Valve
$129.99
Quantity: 1
Claim Your Seller Account
Atkomatic 8000 Series Stainless Steel Solenoid Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

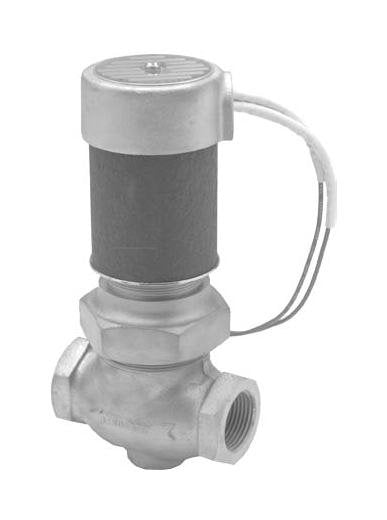

The Atkomatic 8000 Series Solenoid Valves are engineered for high-pressure applications, offering a pressure range from 5 to 4000 psig (0.4 to 276 bar). Constructed with stainless steel, these pilot-piston valves are ideal for a wide range of fluid media including liquids, gases, hydraulic fluids, and more. With features like full port design, a variety of seat materials including Viton®, and compatibility with different coil types, these valves ensure reliable performance in demanding environments. From extreme temperatures of -423°F to +500°F to high viscosity fluids, the 8000 Series valves deliver durability and versatility for institutional and consumer buyers alike.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1/4 in
Specifications Connection Type
Female NPT
Specifications Cv
1.10

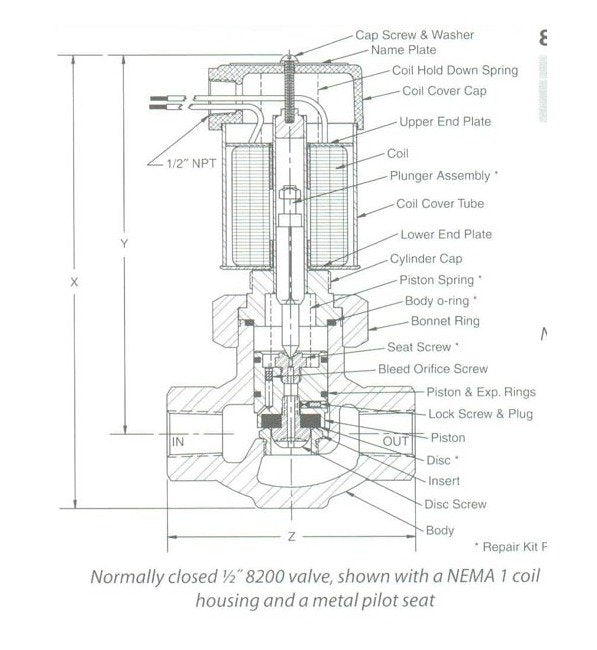

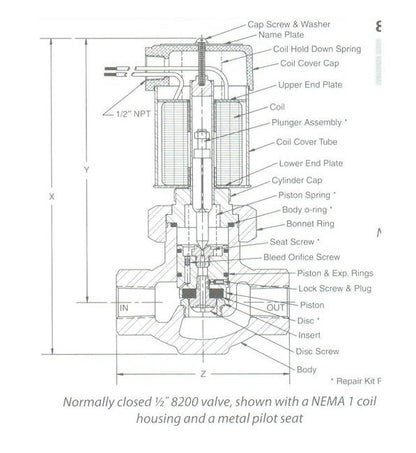

Specifications Dim X
7 in
Specifications Dim Y
6 1/8 in
Specifications Dim Z
3 in
Specifications Fluid Media Type
Liquid from 41 SUS to 150 SUS
Specifications Main Seat Orifice
.375 in

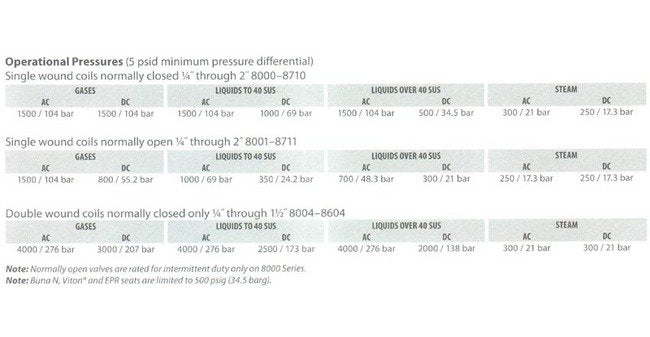

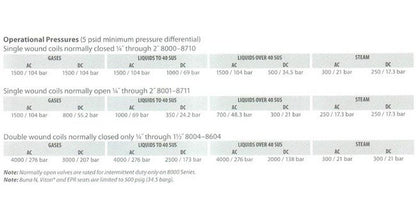

Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Viton®
Specifications Series
8000
Specifications Temperature Range
-15 to 400 ºF | -29 to 204 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
