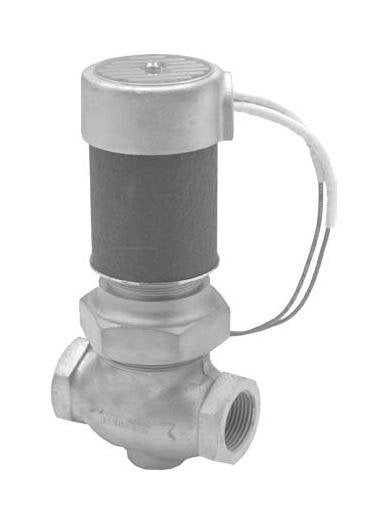

Atkomatic 8000 Series Stainless Steel Solenoid Valves
Atkomatic 8000 Series Stainless Steel Solenoid Valves
SKU:ATK-912108
High-pressure stainless steel solenoid valves with wide fluid compatibility, durability, and reliable performance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Atkomatic 8000 Series Stainless Steel Solenoid Valves
$299.99
Quantity: 1
Claim Your Seller Account
Atkomatic 8000 Series Stainless Steel Solenoid Valves
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic 8000 Series Stainless Steel Solenoid Valves are engineered for high-pressure applications, offering pressure capability ranging from 5 to 4000 psig. Constructed with stainless steel materials, these valves ensure durability and corrosion resistance. With a wide fluid compatibility including air, gasses, liquids, hydraulic fluids, steam, and corrosive fluids, these valves are versatile for various industrial needs. Featuring a variety of seat and seal material options, these valves provide reliable performance in temperatures ranging from -65 to 300 °F. The Atkomatic 8000 Series valves meet stringent industry standards and are suitable for both consumer and institutional procurement.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1/2 in
Specifications Connection Type
Female NPT
Specifications Cv
5.10
Specifications Dim X
8 1/2 in
Specifications Dim Y
7 3/8 in
Specifications Dim Z
4.625 in
Specifications Fluid Media Type
Liquid from 41 SUS to 150 SUS
Specifications Main Seat Orifice
.75 in
Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
EPR
Specifications Series
8000
Specifications Temperature Range
-65 to 300 ºF | -54 to 149 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
