Atkomatic HS Series Bronze Solenoid Valves
Atkomatic HS Series Bronze Solenoid Valves
SKU:ATK-754f11
Efficiently control steam or hot water with Atkomatic HS Series Bronze Solenoid Valves. Pressure range: 5-125 psig, bronze construction, and Class H coil for top performance.
Regular price
$169.99
Regular price
Sale price
$169.99
Unit price
per
Initiate Order
Atkomatic HS Series Bronze Solenoid Valves
$169.99
Quantity: 1
Claim Your Seller Account
Atkomatic HS Series Bronze Solenoid Valves
$169.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic HS Series Bronze Solenoid Valves are designed for efficient control of steam or hot water applications, with a pressure range of 5 to 125 psig. Crafted from high-quality bronze with metal to metal pilot seat and Teflon seals, these valves ensure reliability and durability. Featuring full port design, Cv from 1.4 to 21, and treated stainless steel plunger, they deliver precise and corrosion-resistant performance. With a Class H coil as standard, these pilot-operated valves provide exceptional functionality for both institutional and consumer needs.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1/2 in
Specifications Connection Type
Female NPT
Specifications Cv
3.50

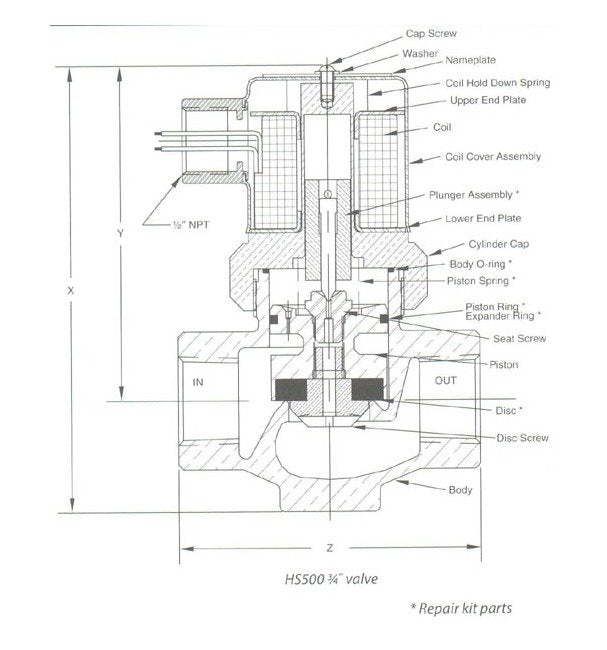

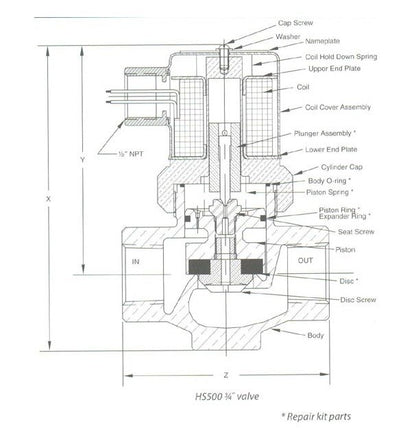

Specifications Dim X
4 3/4 in
Specifications Dim Y
3 7/8 in
Specifications Dim Z
3 in
Specifications Fluid Media Type
Steam or Hot Water
Specifications Main Seat Orifice
.5 in
Specifications Operating Pressure

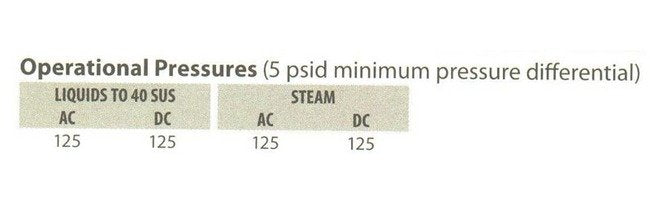

5 to 125 psig | 0.4 to 9 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Series
HS
Specifications Temperature Range
352 ºF | 178 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
230 - 60 VAC
