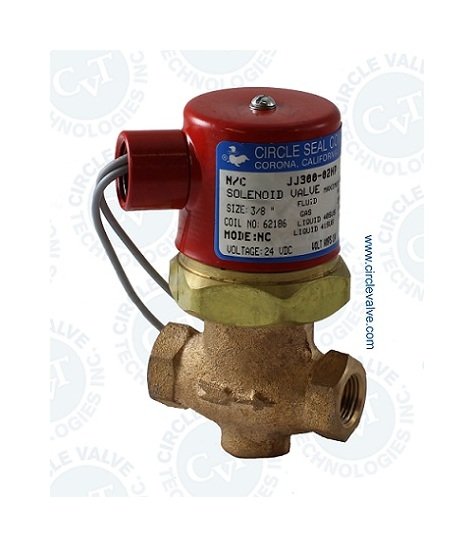

Atkomatic JJ Series Bronze Solenoid Valve
Atkomatic JJ Series Bronze Solenoid Valve
SKU:ATK-5ef718
Reliable Atkomatic JJ Series bronze solenoid valve for industrial applications. Pressure: 5-250 psig, Fluid: Air, Water, Light oil. Temp: -65°F to +180°F. Durable construction for lasting performance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Atkomatic JJ Series Bronze Solenoid Valve
$89.99
Quantity: 1
Claim Your Seller Account
Atkomatic JJ Series Bronze Solenoid Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Atkomatic JJ Series Solenoid Valve is designed for reliable performance in industrial applications. Constructed with bronze and featuring a pilot-piston design, this valve operates at pressures ranging from 5 to 250 psig, suitable for air, water, and light oil. With fluid temperatures from -65°F to +180°F, and various pipe sizes available, this valve offers versatility for different systems. Equipped with Buna N seals and stainless steel components, it ensures durability and corrosion resistance. Ideal for government and institutional settings requiring Class B and Class H coils, NEMA 1 coil housing, and compliant materials.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Connection Size
3/8 in
Specifications Connection Type
Female NPT
Specifications Cv
2.70
Specifications Dim X
4 3/4 in
Specifications Dim Y
3 7/8 in
Specifications Dim Z
2.6875 in
Specifications Fluid Media Type
General Purpose
Specifications Main Seat Orifice
.5 in
Specifications Operating Pressure
5 to 250 psig | 0.4 to 17 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Series
JJ
Specifications Temperature Range
-54 to 82 ºC | -65 to 180 ºF
Specifications Type
Solenoid Valve
Specifications Voltage
24 VDC
