ATSM Series 1/8 Inch (in) Male National Pipe Thread (MNPT) Stainless Steel Adjustable Muffler

Name: ATSM Series 1/8 Inch (in) Male National Pipe Thread (MNPT) Stainless Steel Adjustable Muffler
Brand: Pneuline Supply, Inc.
SKU: MUF-e52e26
Price: 49.99 USD
Availability: OutOfStock

SKU:MUF-e52e26

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

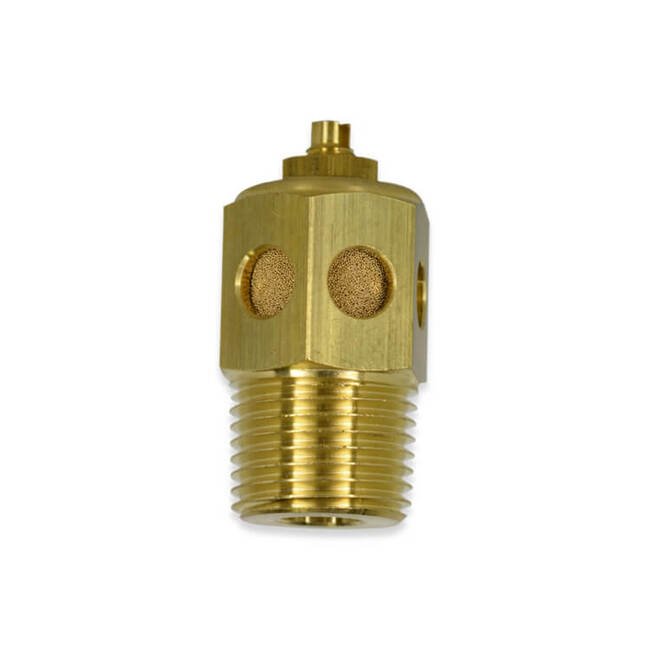

The ATSM Series is an adjustable speed Muffler made of Brass with a standard 40-micron sintered Bronze element. The maximum operating pressure is 300 psi for MNPT thread sizes of 1/8 inch, 1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, and 1 inch, except the 10-32 Male UNF threads. The maximum operating pressure for the 10-32 Male UNF threads is 150 psi. The working temperature range for all sizes is 35ºF to 300ºF.

Product Specifications

Additional Information

This series is also available in 303 Stainless Steel with 316 Stainless Steel, and a 70-micron screen. The Stainless Steel Muffler is available with MNPT threads of 1/8 inch, 1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, and 1 inch. The maximum pressure is 300 psi and the working temperature range is 35ºF to 392ºF.

Note

If you do not see exactly what you are looking for, please contact our sales department.

Technical Specs Material

Stainless Steel

Technical Specs Nominal Rating

70 µm

Technical Specs Series

ATSM

Technical Specs Temperature Range

35 to 300 ºF

Technical Specs Thread Size

1/8 in

Technical Specs Thread Type

Male National Pipe Thread (MNPT)

ATSM Series 1/8 Inch (in) Male National Pipe Thread (MNPT) Stainless Steel Adjustable Muffler
