ATTS Series 1 Inch (in) Male National Pipe Thread (MNPT) Bronze Filter Brass Muffler
ATTS Series 1 Inch (in) Male National Pipe Thread (MNPT) Bronze Filter Brass Muffler
SKU:MUF-59422c
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
ATTS Series 1 Inch (in) Male National Pipe Thread (MNPT) Bronze Filter Brass Muffler
$49.99
Quantity: 1
Claim Your Seller Account
ATTS Series 1 Inch (in) Male National Pipe Thread (MNPT) Bronze Filter Brass Muffler
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

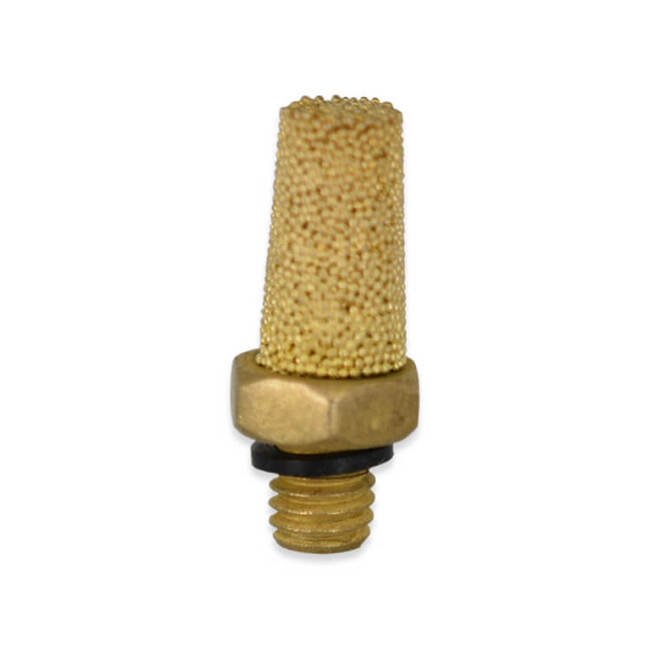

The ATTS Series is a Bronze muffler with a Brass body. This muffler is for cylinders, gear-boxes, or storage vessels. Available in 10-32 Male UNF threads and 1/16 inch, 1/8 inch, 1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, and 1 inch MNPT threads. The filter element is sintered Bronze with a standard of 40 microns, but 10 and 90 micron elements are available. The maximum operating pressure for the sintered Bronze muffler is 300 psi and the working temperature is 35ºF to 300ºF.
Product Specifications
Additional Information
This series is also available in 303 Stainless Steel body and 316 Stainless Steel element with thread sizes from 1/8 inch to 1 inch MNPT. The maximum operating pressure for the Stainless Steel muffler is 300 psi and the working temperature is 35ºF to 392ºF.
Note
If you do not see exactly what you are looking for, please contact our sales department.
Technical Specs Material
Brass
Technical Specs Nominal Rating
40 µm
Technical Specs Series
ATTS
Technical Specs Temperature Range
35 to 300 ºF
Technical Specs Thread Size
1 in
Technical Specs Thread Type
Male National Pipe Thread (MNPT)
