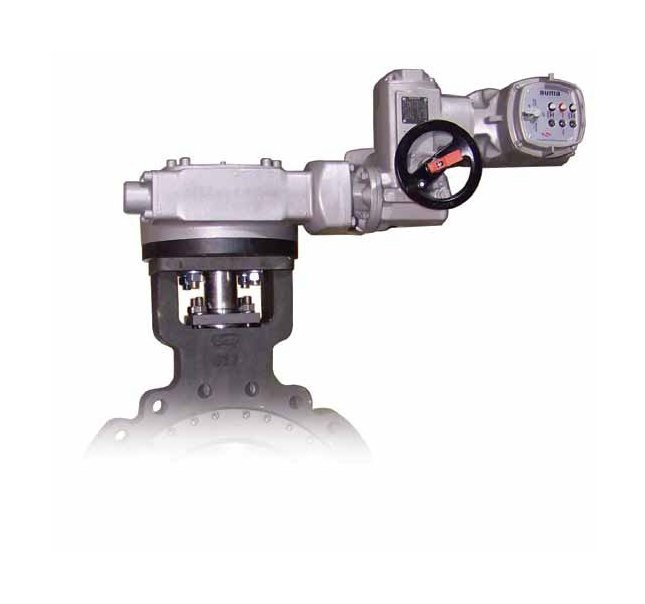

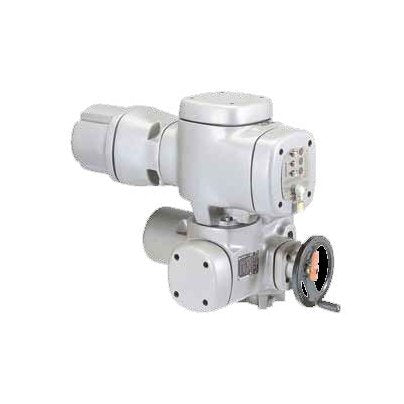

The AU Series Industrial Electric Actuator offers precise and durable control for quarter turn valves, including rubber seated butterfly valves and industrial ball valves. Built to NEMA 4X (IP 67) standards, it ensures reliable performance even in outdoor settings. Featuring integrated controls, manual override handwheel, auxiliary switches, torque switches, position indicator, and a heater, this actuator guarantees efficient operation. With a running torque of 70800 in·lbs, thermal overload protection, and direct mounting compatibility with Bray valves, the AU Series is a versatile choice for industrial applications.
Product Specifications
Specifications Control Type
On/Off or Floating
Specifications Cycles
15,000 Full Stroke Cycles; 2,500,000 Repositions at Rated Running Torque
Specifications Duty Cycle
15 min. continuous max six starts/minute
Specifications Enclosure
NEMA 4, 4X, IP 67
Specifications Features
Auxiliary Switches | Heater | On/Off
Specifications Full Load Current Draw
6.5 A
Specifications Heater
120 V internal (12.5 W)
Specifications Input Signal
115 VAC ±10% at 60 Hz
Specifications Locked Rotor Current Draw
14 A
Specifications Motor Protection
PTC Thermistors
Specifications Operating Time
60 sec
Specifications Power Requirements
115 VAC ±10% at 60 Hz, Single Phase
Specifications Running Torque
70800 in·lbs | 8000 nm
Specifications Temperature Limits
-20 to 175 ºF | -29 to 79 ºC

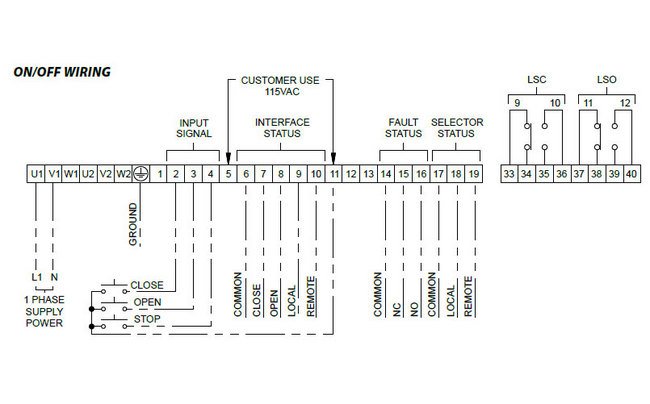

Specifications Terminals
AUMA plug/ socket connector with screw type connection
Specifications Torque
70800 in·lbs
Specifications Weight
270 lbs | 101 kg
