AU Series Industrial Electric Actuator - Precision Control for Quarter Turn Valves
AU Series Industrial Electric Actuator - Precision Control for Quarter Turn Valves
SKU:ACT-6f4393
Precise control for quarter turn valves, compact design, NEMA 4X-rated for outdoor use. Ideal for industrial applications.
Regular price
$1,599.00
Regular price
Sale price
$1,599.00
Unit price
per
Initiate Order
AU Series Industrial Electric Actuator - Precision Control for Quarter Turn Valves
$1,599.00
Quantity: 1
Claim Your Seller Account
AU Series Industrial Electric Actuator - Precision Control for Quarter Turn Valves
$1,599.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

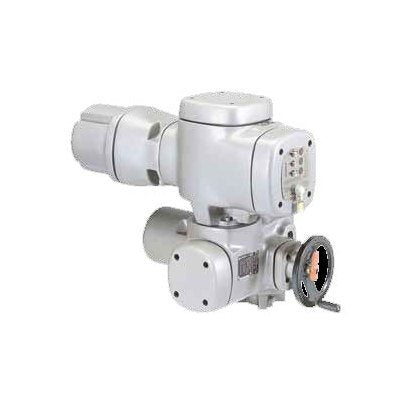

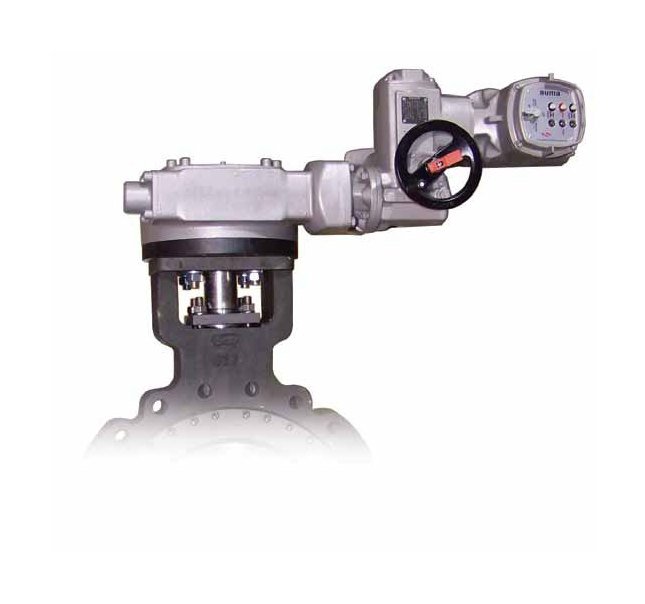

The AU Series Industrial Electric Actuator is designed to deliver precise and durable control for quarter turn valves, including rubber seated butterfly valves, high performance butterfly valves, and industrial ball valves. Featuring a compact industrial housing rated to NEMA 4X (IP 67) standards for outdoor use, this actuator comes equipped with integrated controls, a manual override handwheel, and auxiliary switches, torque switches, and a position indicator. With options for both 120V single phase and three phase units, the AU Series actuators also offer a heater for thermal overload protection, PTC thermistors for motor protection, and seamless mounting on Bray butterfly valves and ball valves without the need for an adapter bracket. Modulating units with position feedback ensure optimal performance, making it ideal for industrial applications requiring reliable and efficient valve control.
Product Specifications
Specifications Control Type
On/Off or Floating
Specifications Cycles
15,000 Full Stroke Cycles; 2,500,000 Repositions at Rated Running Torque
Specifications Duty Cycle
15 min. continuous max six starts/minute
Specifications Enclosure
NEMA 4, 4X, IP 67
Specifications Features
Auxiliary Switches | Heater | On/Off
Specifications Full Load Current Draw
6.5 A
Specifications Heater
120 V internal (12.5 W)
Specifications Input Signal
115 VAC ±10% at 60 Hz
Specifications Locked Rotor Current Draw
14 A
Specifications Motor Protection
PTC Thermistors
Specifications Operating Time
60 sec
Specifications Power Requirements
115 VAC ±10% at 60 Hz, Single Phase
Specifications Running Torque
40680 in·lbs | 4596 nm
Specifications Temperature Limits
-20 to 175 ºF | -29 to 79 ºC
Specifications Terminals
AUMA plug/ socket connector with screw type connection
Specifications Torque
40680 in·lbs
Specifications Weight
165 lbs | 62 kg
