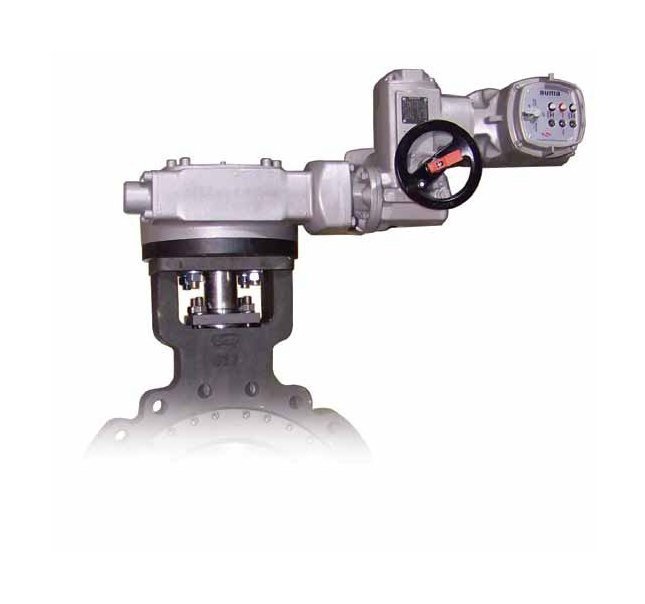

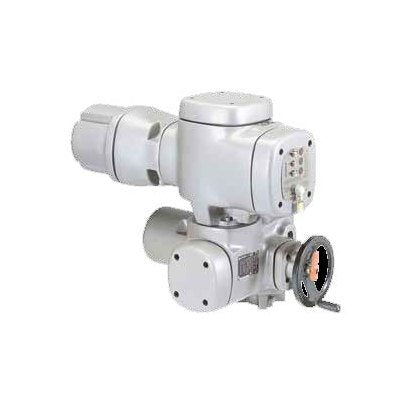

The AU Series Industrial Electric Actuator is designed to deliver precise and durable control for quarter turn valves, including rubber-seated butterfly valves, high-performance butterfly valves, and industrial ball valves. With a compact industrial housing rated to NEMA 4X (IP 67) standards for outdoor use, this actuator is equipped with integrated controls, a manual override handwheel, auxiliary switches, torque switches, a position indicator, and a heater. Offering modulating capabilities and thermal overload protection via PTC thermistors, the AU Series Actuator ensures reliable performance and easy installation on Bray butterfly valves and ball valves without the need for an adapter bracket.
Product Specifications
Specifications Control Type
Proportional
Specifications Cycles
15,000 Full Stroke Cycles; 2,500,000 Repositions at Rated Running Torque
Specifications Duty Cycle
15 min. continuous max six starts/minute
Specifications Enclosure
NEMA 4, 4X, IP 67
Specifications Features
Auxiliary Switches | Heater | Modulating
Specifications Full Load Current Draw
6.5 A
Specifications Heater
24 V internal (12.5 W)
Specifications Input Signal
4 to 20 mA
Specifications Locked Rotor Current Draw
14 A
Specifications Motor Protection
PTC Thermistors
Specifications Operating Time
60 sec
Specifications Power Requirements
115 VAC ±10% at 60 Hz, Single Phase
Specifications Running Torque
40680 in·lbs | 4596 nm
Specifications Temperature Limits
-20 to 175 ºF | -29 to 79 ºC
Specifications Terminals
AUMA plug/ socket connector with screw type connection
Specifications Torque
40680 in·lbs
Specifications Weight
165 lbs | 62 kg
