Autoclave Engineer High Pressure Connection Plug 60,000 psi MAWP
Autoclave Engineer High Pressure Connection Plug 60,000 psi MAWP
SKU:LUB-9978ac
High Pressure Connection Plug: 60,000 psi MAWP, 1/4, 3/8, 9/16 sizes, ideal for 30VM, 40VM, 60VM fittings.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Autoclave Engineer High Pressure Connection Plug 60,000 psi MAWP
$49.99
Quantity: 1
Claim Your Seller Account
Autoclave Engineer High Pressure Connection Plug 60,000 psi MAWP
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autoclave Engineer High Pressure Connection Plug is engineered for exceptional performance with a maximum allowable working pressure (MAWP) of 60,000 psi (4137 bar). These high-pressure fittings in 1/4, 3/8, and 9/16 sizes ensure reliable connections for 30VM, 40VM, 60VM valves, and fittings. Precision-engineered for durability and safety, these components meet stringent industry standards for high-pressure applications.
Product Specifications
Manufacturing Notes 0

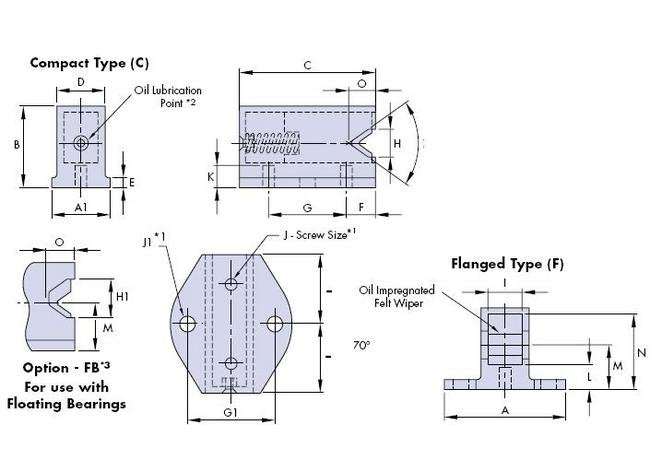

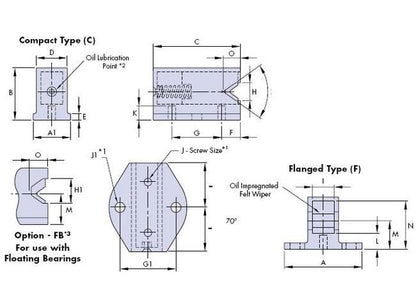

For 1: 2 machine screws with cross-recessed pan heads to DIN7985A are supplied for fixing the flanged type lubricator (see J1 in table). Additionally, 2 self tapping screws for plastic with PT thread form and cross-recessed pan heads are supplied for the compact type lubricator (see J in table).For 2: Lubrication interval depends on length of stroke, duty and environmental factors. Replenish lubricant as necessary using a 68 viscosity EP mineral oil.For 3: Size 25,44 & 76 lubricators are available with increased clearance "H1" to accommodate the "V float" of the floating bearings
Specifications Dimension A1 Type C
17 mm
Specifications Dimension A Type F
34 mm
Specifications Dimension B
20 mm
Specifications Dimension C
38 mm
Specifications Dimension D
15 mm
Specifications Dimension E
2.4 mm
Specifications Dimension F
8 mm
Specifications Dimension G1 01
25 mm
Specifications Dimension G 01
22 mm
Specifications Dimension H
7 mm
Specifications Dimension H1
9 mm
Specifications Dimension I
11 mm
Specifications Dimension J1 Hole
4.2 mm
Specifications Dimension J1 Screw Size
M4 x 10
Specifications Dimension J
3 mm
Specifications Dimension J Length
16 mm
Specifications Dimension K
5.5 mm
Specifications Dimension L
6.25 mm
Specifications Dimension M
11.5 mm
Specifications Dimension N
18.25 mm
Specifications Dimension O
8 mm
Specifications For Use With Curved Segments
REM, RIM
Specifications For Use With Ring Discs
R44
Specifications For Use With Ring Slides
R44
Specifications For Use With Track System
TNM 44, TNME
Specifications Weight
16 g
