Autoclave Engineers High Pressure Bulkhead Couplings
Autoclave Engineers High Pressure Bulkhead Couplings
SKU:BOG-ad21a5
Enhance efficiency and reliability with Autoclave Engineers High Pressure Bulkhead Couplings, ideal for critical high-pressure applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Autoclave Engineers High Pressure Bulkhead Couplings
$129.99
Quantity: 1
Claim Your Seller Account
Autoclave Engineers High Pressure Bulkhead Couplings
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior performance and reliability with the Autoclave Engineers High Pressure Bulkhead Couplings. Featuring a robust construction and precision engineering, these couplings offer a seamless connection for high-pressure applications. With a pressure rating of 43000 psi and precise dimensions, including an outside diameter tube of 25.4 mm and a tubing engagement depth of 1.62 inches, these couplings ensure a secure fit and leak-free operation. Designed to meet the demands of critical industrial environments, these couplings come complete with glands and collars for hassle-free installation. Trust in Autoclave Engineers for top-quality fittings that exceed industry standards.
Product Specifications
Manufacturing Notes 0

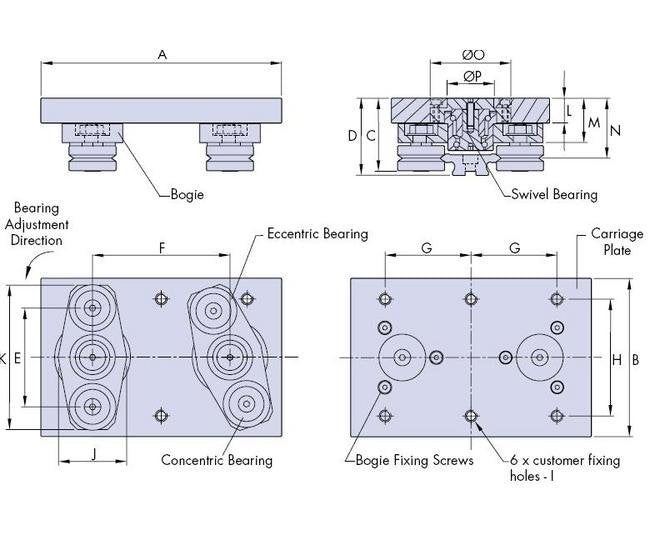

1. In rare cases where adjustment of the eccentric bearings is required, the bogies must be removed from the carriage plate and bolted instead to the adjustment brace. This will mimic the carriage and provide access to the fixing nuts allowing adjustment of the eccentric bearings to take place. 2. Please note that floating bearings 36 cannot be supplied with bogie bearings
Specifications Adjustment Brake
AB-25
Specifications Dimension A
130 mm
Specifications Dimension B
80 mm
Specifications Dimension C
42.1 mm
Specifications Dimension D
44.5 mm
Specifications Dimension E
46.1 mm
Specifications Dimension F
75 mm
Specifications Dimension G 01
45 mm
Specifications Dimension H 01
60 mm
Specifications Dimension I
M6
Specifications Dimension J
38 mm
Specifications Dimension K
75 mm
Specifications Dimension L
15 mm
Specifications Dimension M
25.5 mm
Specifications Dimension N
34.5 mm
Specifications Dimension O
46 mm
Specifications Dimension P
29 mm
Specifications For Use With
TR 25
