Autoclave Engineers High Pressure Elbow Fittings
Autoclave Engineers High Pressure Elbow Fittings
SKU:FIX-866cfa
Precision-engineered High Pressure Elbow Fittings for 150,000 psi applications, ensuring safety and reliability in industrial settings.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Autoclave Engineers High Pressure Elbow Fittings
$89.99
Quantity: 1
Claim Your Seller Account
Autoclave Engineers High Pressure Elbow Fittings
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled durability and precision with Autoclave Engineers High Pressure Elbow Fittings. These fittings, designed for high-pressure applications, feature a pressure rating of 150,000 psi, ensuring optimal performance in demanding industrial environments. With a robust construction and precise dimensions, these fittings offer a secure connection, enhancing operational safety. Compliant with federal procurement standards, these fittings meet the stringent requirements for government and institutional use, providing reliability and efficiency in every application.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0

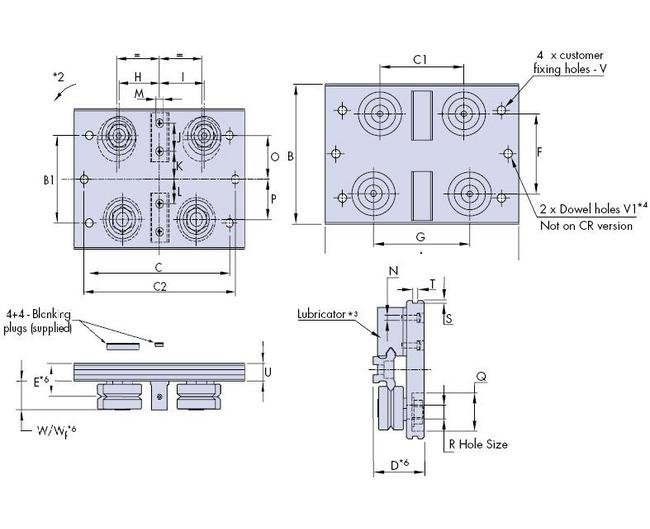

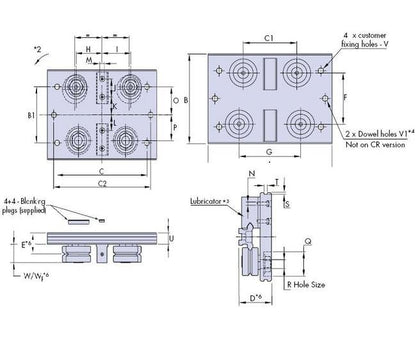

For 1: Fixed center carriages will experience a reduction in preload or a slight clearance as they pass between the curves and straights on a track system, but this is rarely an issue. This clearance is detailed on 57. Please note the FCC25 159 has a larger than normal clearance. Bogie carriages 47 are not subject to clearance.For 2: Offset holes in carriage for eccentric bearings necessitate adjustment rotation in the direction shown.For 3: It is recommended that carriages are fitted with lubricators. The quantity of lubricators may be reduced in systems with many carriages or where the bleed lubrication facility is used.For 4: Dowel holes V1 define the center and may be used for location purposes. They are not included as standard on the corrosion resistant version, but are available on special request.For 5: CHK controlled height carriages use CHK bearings and are supplied in sets, matched by their E dimension. It is recommended to specify CHK for precision applications or where consistent carriage heights are important. CHK is standard for carriages with DR bearings.For 6: The W dimension is greater for carriages with floating bearings - see Wf in the table. Dimensions D and E will change for carriages with floating bearings. The amount of float is indicated by dimension B 1
Specifications Dimension A
75 mm
Specifications Dimension B
64 mm
Specifications Dimension B1
40 in
Specifications Dimension C
60 mm
Specifications Dimension C1
25 mm
Specifications Dimension C2 001
65 mm
Specifications Dimension D
24.75 mm
Specifications Dimension E
16.75 mm
Specifications Dimension F
34.4 mm
Specifications Dimension G
32.03 mm
Specifications Dimension H
13.76 mm
Specifications Dimension I
18.27 mm
Specifications Dimension J
13 mm
Specifications Dimension K
13 mm
Specifications Dimension L
12.3 mm
Specifications Dimension M
4.5 mm
Specifications Dimension M Depth
2.5 mm
Specifications Dimension N
2.7 mm
Specifications Dimension O
18.49 mm
Specifications Dimension P
17.19 mm
Specifications Dimension Q
15.8 mm
Specifications Dimension Q Depth
7 mm
Specifications Dimension R Hole Size F6
6 mm
Specifications Dimension R Tolerance Hole Size F6
+0.010 mm | +0.018 mm
Specifications Dimension S
1.5 in
Specifications Dimension T
4 mm
Specifications Dimension U
10 mm
Specifications Dimension V
M5
Specifications Dimension V1 K6
4 mm
Specifications Dimension V1 Tolerance K6
+0.002 mm | -0.006 mm
Specifications Dimension W
12.4 mm
Specifications For Use With Ring Slides And Curved Segments
R20 143 R360/R180/R90
Specifications For Use With Track System
TR20 143
Specifications Weight
190 g
